Rates of fuel discharge as affected by the design of fuel-injection systems for internal-combustion engines (1933)
NASA Technical Reports Server (NTRS) · leaf 6

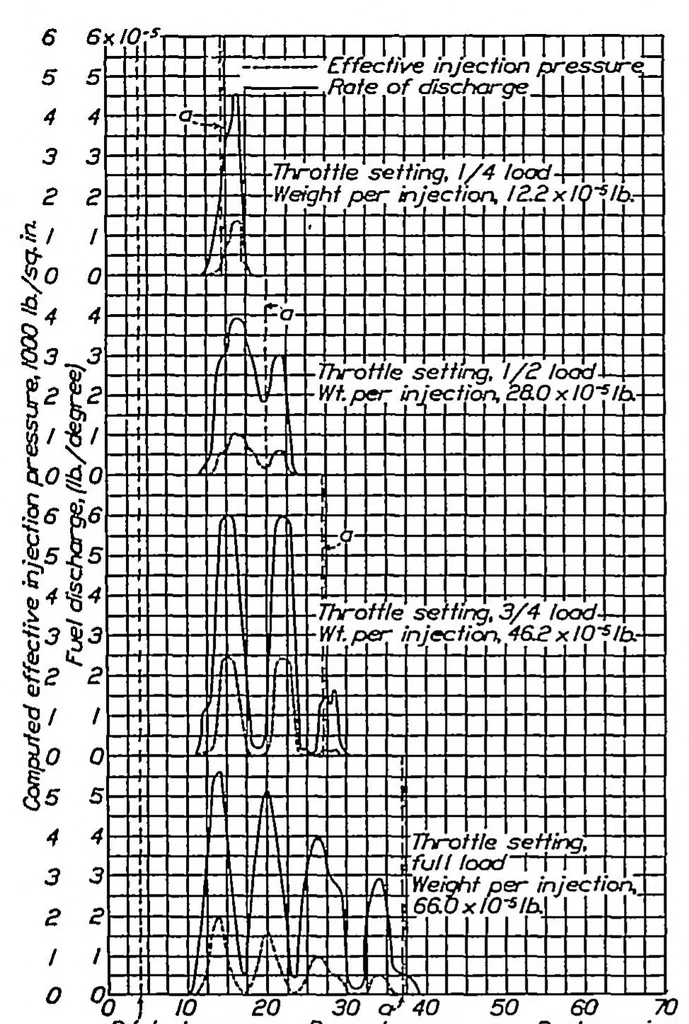

BATES OF FUEL DISCHARGE FOR INTERNAL-COMBUSTION ENGINES … v0 ) 10 20 30 &>40 50 60 70 Pari closure. Pump degrees. a, Port opening Figure 7.—Bates of discharge and effecUvemJeciion pressures with various throttle settings: Pump speed, 216 r. p. m.; Injection-tube length, 34 Inches; Inside tube diameter, 0.126 Inch; Injection-valve closing pressure, 2^00…
