Photomicrographic Studies of Fuel Sprays (1934)
NASA Technical Reports Server (NTRS) · leaf 25

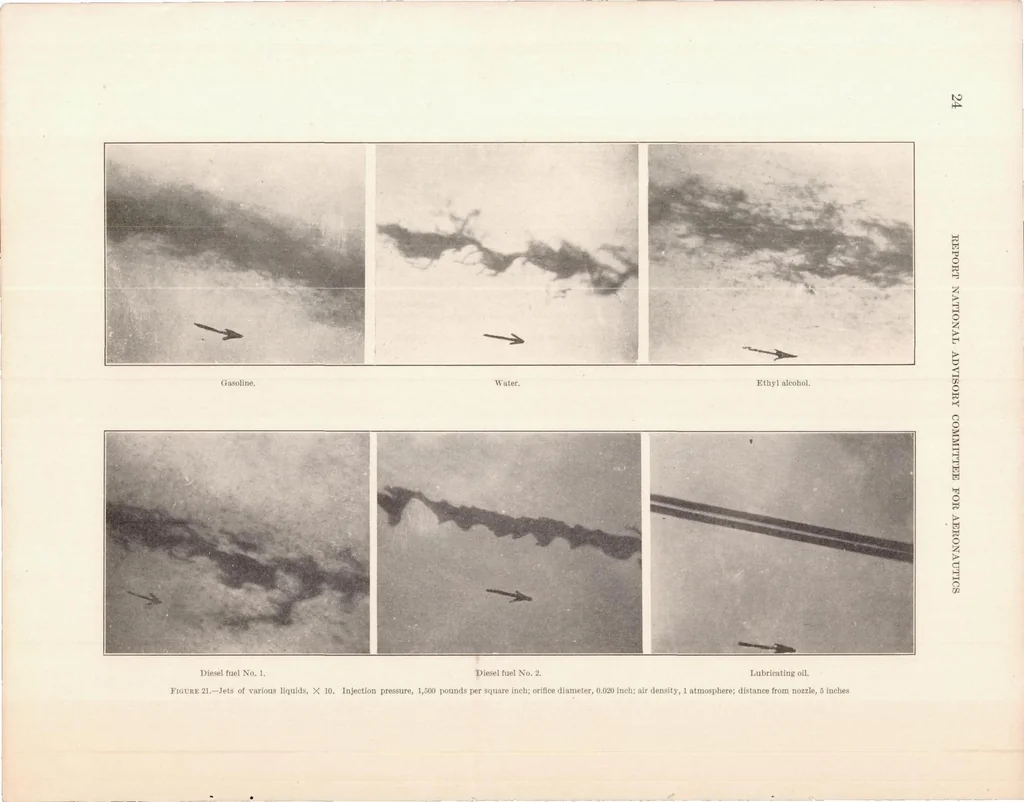

Diesel fuel No. 1. Diesel fuel No. 2. Lubricating oil. Figure 21.—Jets of various liquids, X 10. Injection pressure, 1,500 pounds per square inch; orifice diameter, 0.020 inch; air density, 1 atmosphere; distance from nozzle, 5 inchesNASA Technical Reports Server (NTRS)
