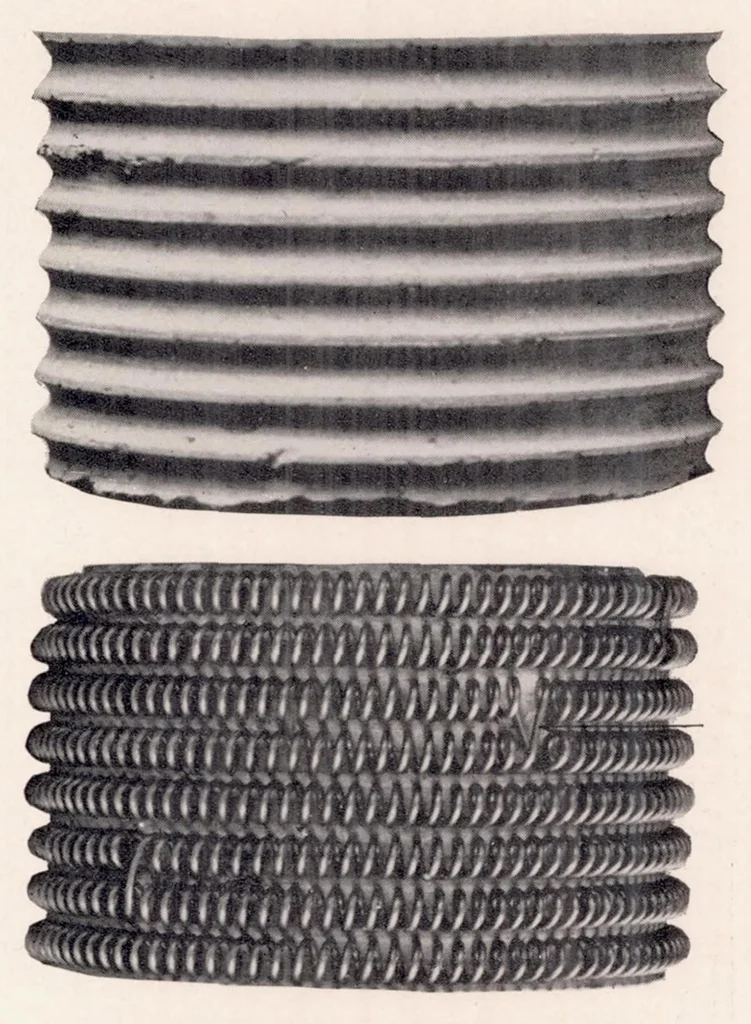

7 HEAT TRANSFER FROM FINNED METAL CYLINDERS IN AN AIR STREAM End fairing Inner guard ring heating unit 1/32" asbestos separator -Refractory cement Mounting tube r, resistance wire Guard ring Guard ring Test cylinder Figure 2.—Details of construction of test unit. … with a direct-reading pyrometer and a selector switch. The thermocouple junctions were constructed by spot- /"*• welding 0.013-inch iron and constantan wires to the cylinder surface. Of the 24 thermocouples used, 9 were located on the outer cylinder wall between fins at intervals of 22}£° around…
