A Description and Test Results of a Spark-Ignition and a Compression-Ignition 2-Stroke-Cycle Engine (1935)
NASA Technical Reports Server (NTRS) · leaf 5

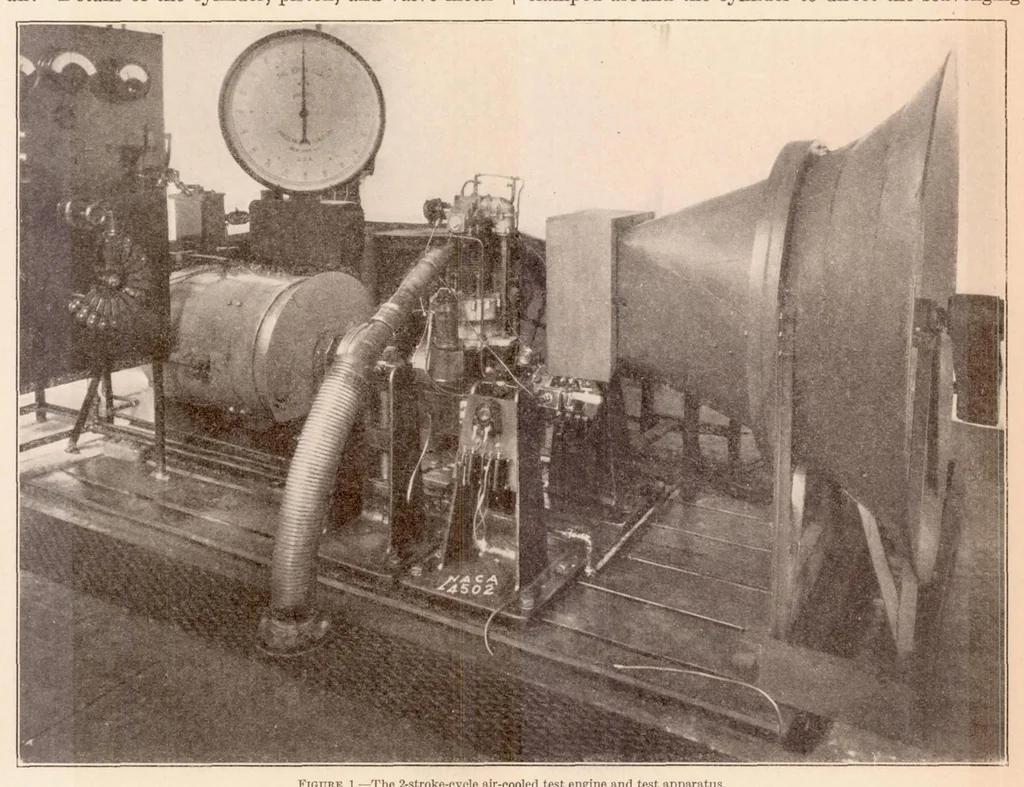

der circumference provided a total The compression ratio computed on the swept volume scavenging and charging period of 80° of crankshaft was 5.3. Figure 1 shows the general appearance of rotation, 40° on either side of bottom center. A the engine and test apparatus; the large cone in the suitable… … Figure 1.—The 2-stroke-cycle air-cooled test engine and test apparatus. air into the inlet ports. Figure 3 is a view of the anism are shown by the sectional views of figure 2. altered cylinder showing the inlet manifold in place The construction of the crankcase is described in with the' cover…
