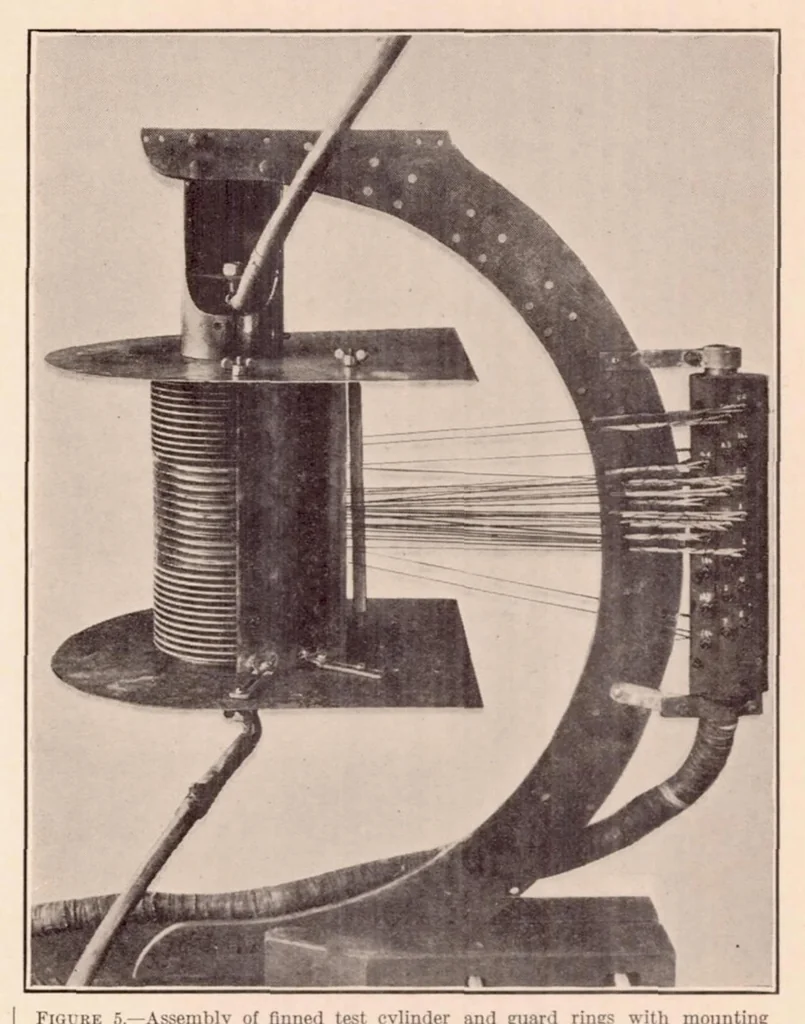

nted symmetrically on each side of the test cylin- der with respect to the plane through the axis of the cylinder and parallel to the air stream. Two sizes of these plates were tested, the narrow one being \){ inches wide and the wide one 4^ inches. The plate baffles and all other baffles tested… … CO -Assembly of finned test cylinder and guard rings with mounting \<-0.040" PlOUBI Ci bracket, baffles, and thermocouples in place. I | p.0625"R 0.03"R I 0.03" R The shell baffles (see figs. 8, 9, 11, 13, and 15) con- sisted of two pieces of sheet steel of single curvature 0.08" mounted…
