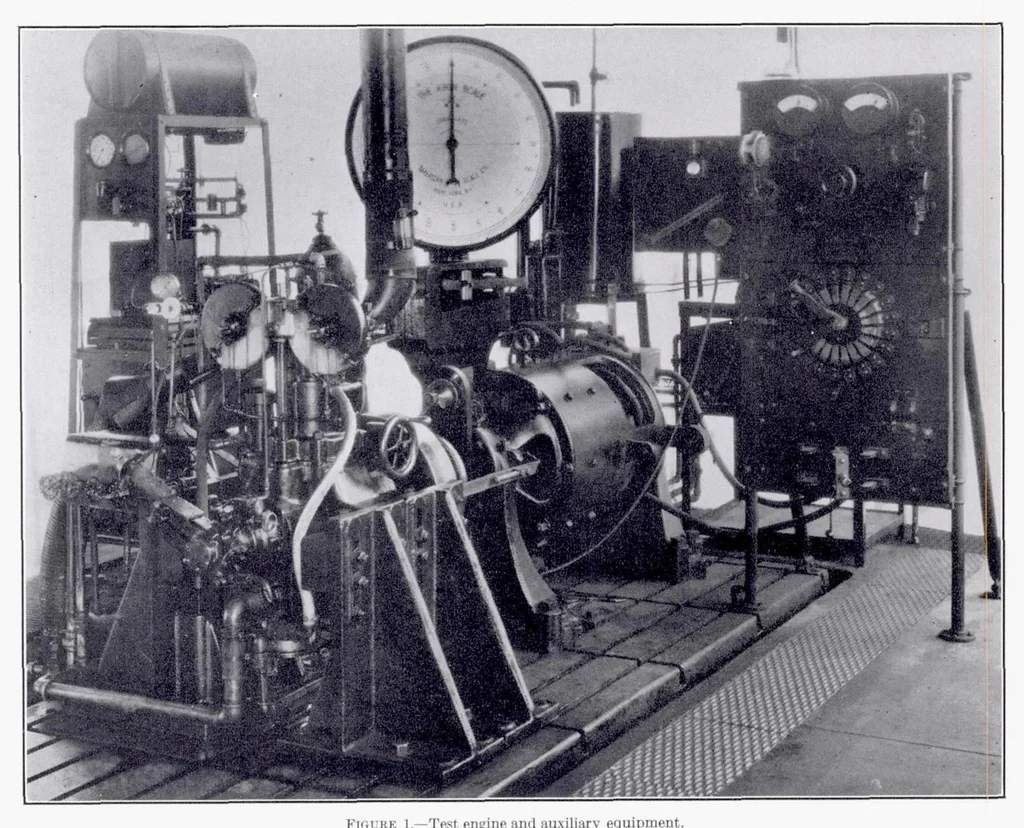

aded automatic injec- the heads of horizontally opposed intake and exhaust tion valve, set to open at 3,000 pounds per square inch, valves, as shown in figure 2. Changes in compression was installed in the top hole of the combustion chamber. ratio were obtained by varying the length of the The… … Figure 1.—Test engine and auxiliary equipment Figure 5 shows enlarged sections of the nozzles. piston crown and cylinder cal clearance between the The length-diameter ratio of the orifices is 2. The head at about 0.032 inch. fuels used were conventional Diesel engine fuels A detail drawing of the…
