Pressure-Distribution Measurements at Large Angles of Pitch on Fins of Different Span-Chord Ratio on a 1/40-Scale Model of the U. S. Airship "Akron." (1937)

NASA Technical Reports Server (NTRS) · leaf 8

An illustration from Pressure-Distribution Measurements at Large Angles of Pitch on Fins of Different Span-Chord Ratio on a 1/40-Scale Model of the U. S. Airship "Akron.", 1937, leaf 8

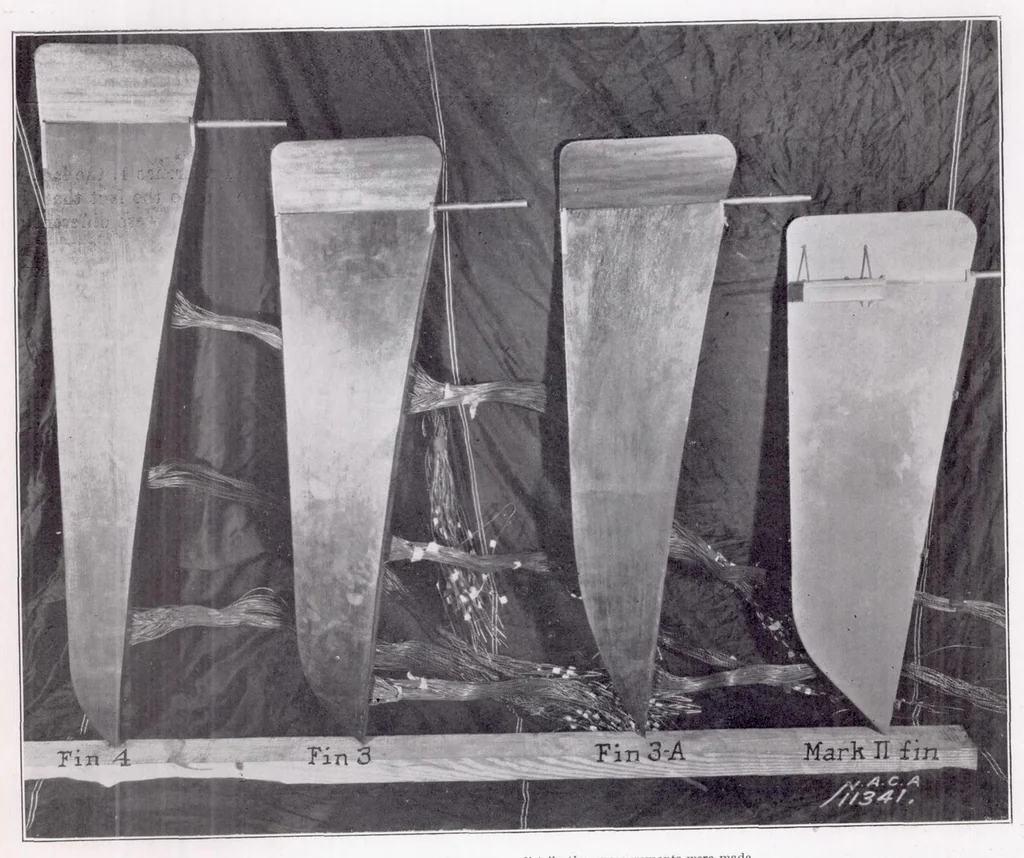

5 PRESSURE-DISTRIBUTION MEASUREMENTS ON FINS OF U. S. AIRSHIP "AKRON' Figure 6-Dimensions and orifice locations. Fin 4; Mo-scale model of the Akron; all dimensions given in inches. … Figure 7-The fins on which pressure-distribution measurements were
