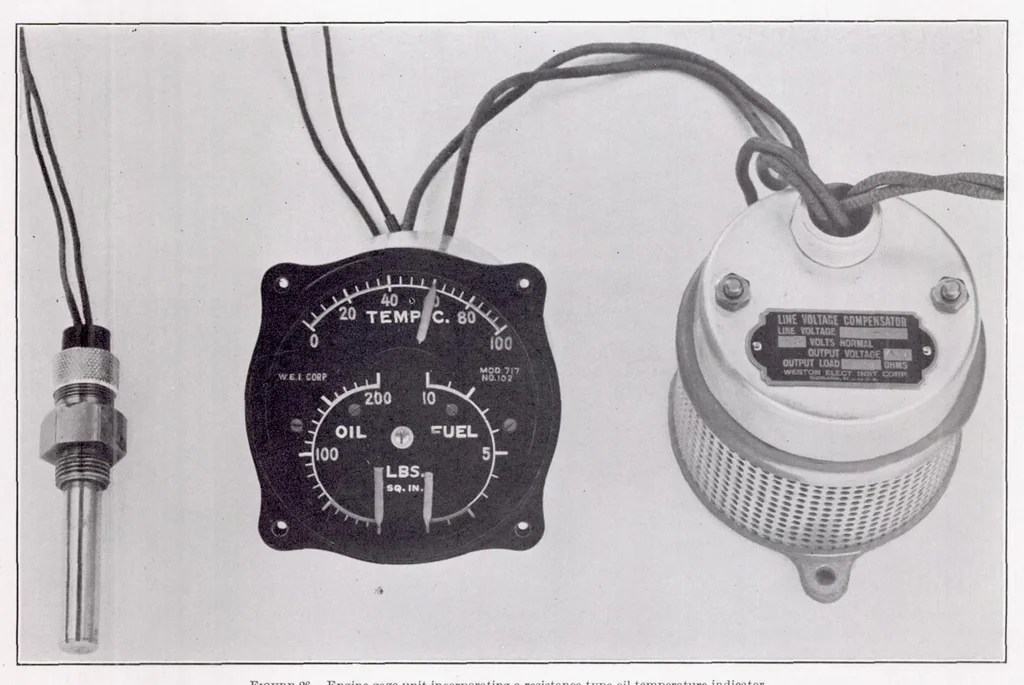

ted to indicate correctly at 40° F. superheat regardless of the resistance of the galvanometer circuit. The construction of the temperature elements is similar to that described for the resistance thermometer. Figure 25.—A potentiometer temperature indicator. A photograph of the gas-temperature… … Figure 26.—Engine gage unit incorporating a resistance-type oil-temperature indicator.
