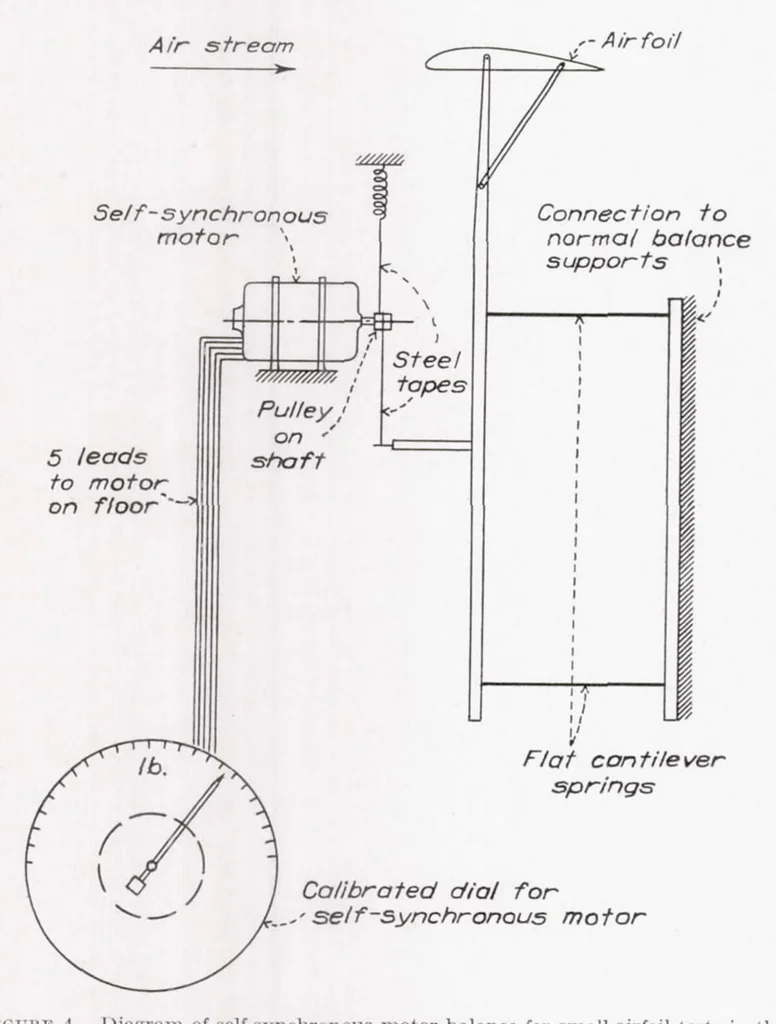

6). Owing to to determine whether increasing the length of the open the small forces encountered in measuring the lift, it section would appreciably affect the down wash at the was necessary to construct a special balance, a schematic tail. Tests were made for each of the four tunnel diagram of… … Figure 4.—Diagram of self-synchronous motor balance for smail-airfoil tests in the full-scale tunnel. PlGUttE 5.—The experimental set-up in the full-scale tunnel. For all the test conditions the air-stream angles in the tunnel at all the stations were obtained with the frame, this frame being…
