Effect of Service Stress on Impact Resistance, X-ray Diffraction Patterns, and Microstructure of 25s Aluminum Alloy (1939)
NASA Technical Reports Server (NTRS) · leaf 20

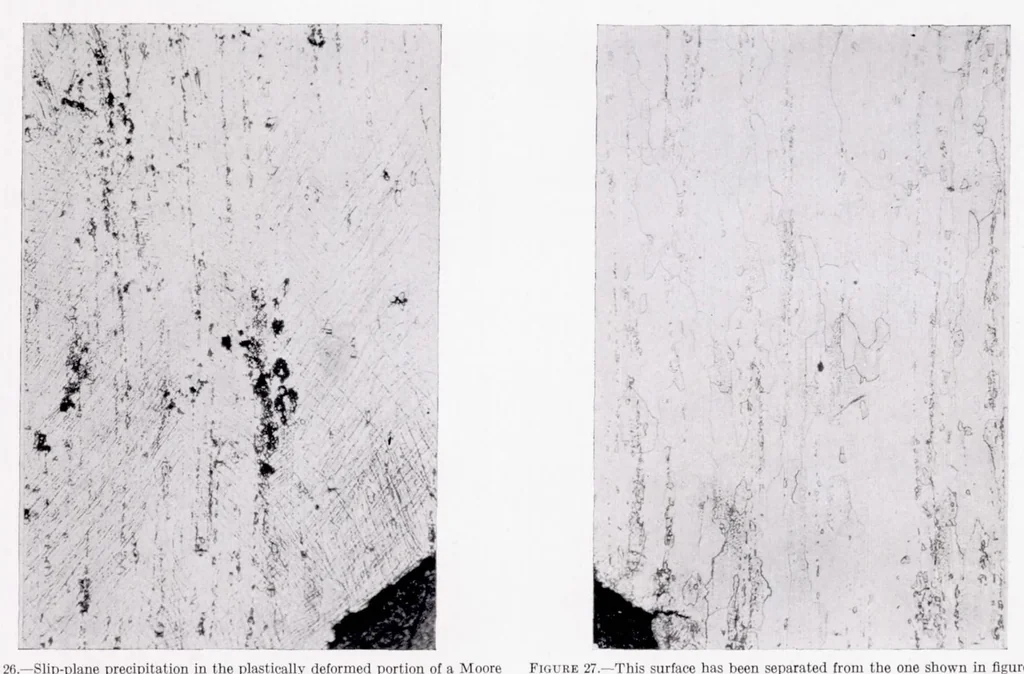

on, unstressed material in respect to the ±19,000 pounds per square inch for the requenched- amounts of slip-plane precipitation developed by equal and-aged alloy and for the as-received material, respec- aging treatments. Figure 28 (a) to 28 (f) show the tively. It is therefore evident that,… … Figure 26.—Slip-plane precipitation in the plastically deformed portion of a Moore Figure 27.—This surface has heen separated from the one shown in figure 26 by a rotating-beam fatigue specimen. The 25S specimen was broken by repeated stress longitudinal cut. The portion shown here was not aged at…
NASA Technical Reports Server (NTRS)
Internet Archive · NASA Technical Reports · Public domain (US government work). Free to use for anything.
