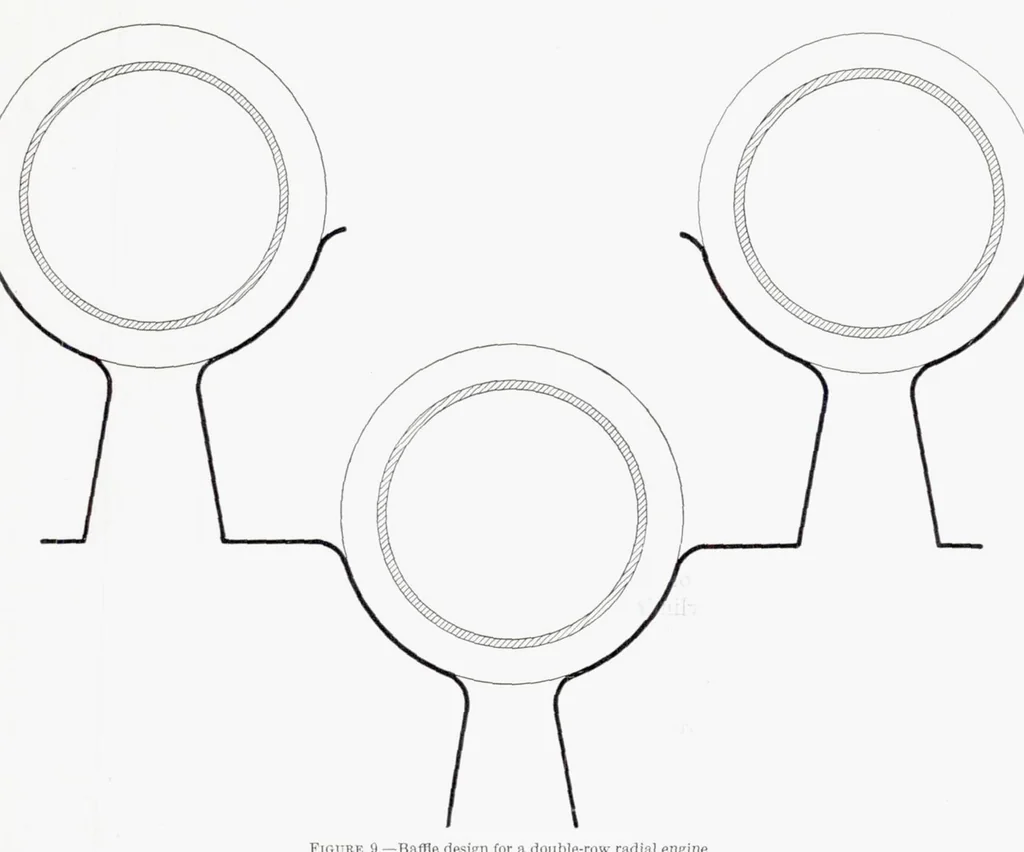

8 REPORT NO. 662—NATIONAL ADVISORY COMMITTEE FOR AERONAUTICS … Figure 9.—Baffle design for a double-row radial engine. double-row radial engine is given in figure 9. The quate cooling at full power. These values complete the straight portion between the exit of the front baffle and information necessary for design. the entrance to the rear baffle can be varied…
