Engine Knock and Combustion Chamber Form (1939)
NASA Technical Reports Server (NTRS) · leaf 24

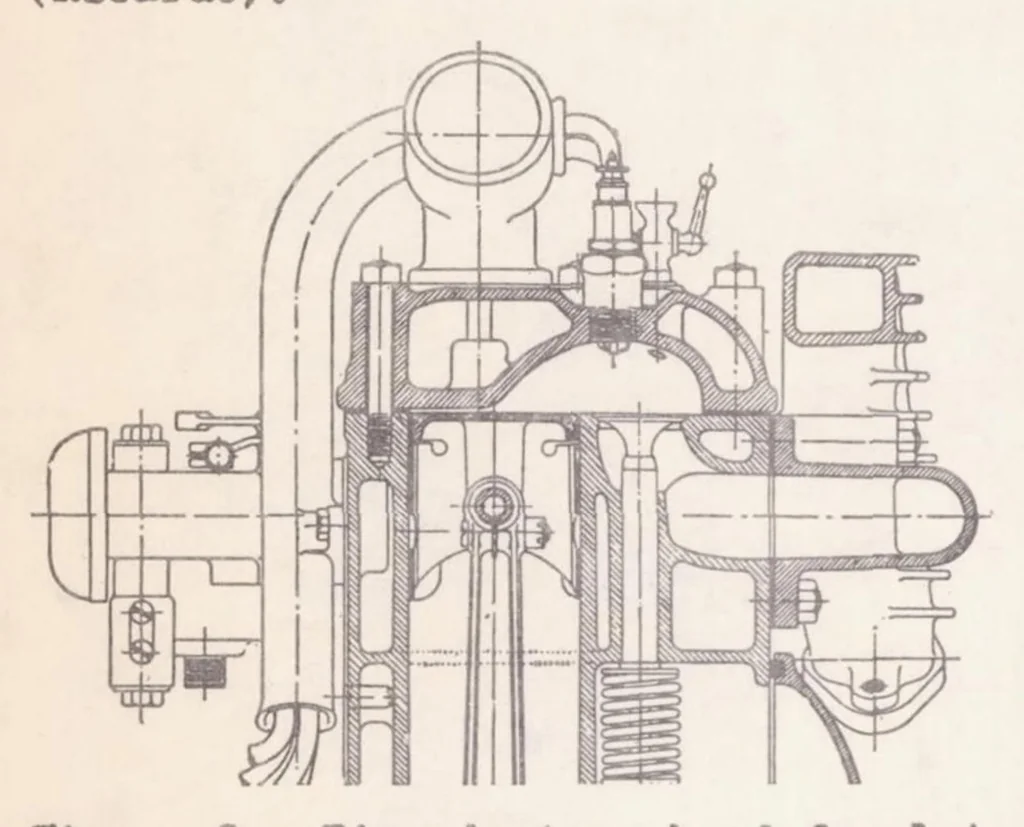

Figs.8.9,10,11,12,13,14,15 N.A.C.A. Technical Memorandum No. 914 Figure 8.- Combustion chamber with op- Height of gap 171/71 posite horizontal valves Figure 10.- Relation of knock- (Ricardo). free useful com- … Figure 9.- Ricardo type head for lat- erally controlled engines. Figure 12.- Cylinder — head with shock absorption (Ricardo). Figure 14.- Whatmough's gas cushion before the exhaust valve. Figure 15.- Combustion chamber shapes Figure 13.- Whatmough's anti- of laterally controlled turbulent cylinder…NASA Technical Reports Server (NTRS)
