Effect of transition in cross-sectional shape on the development of the velocity and pressure distribution of turbulent flow in pipes (1939)
NASA Technical Reports Server (NTRS) · leaf 45

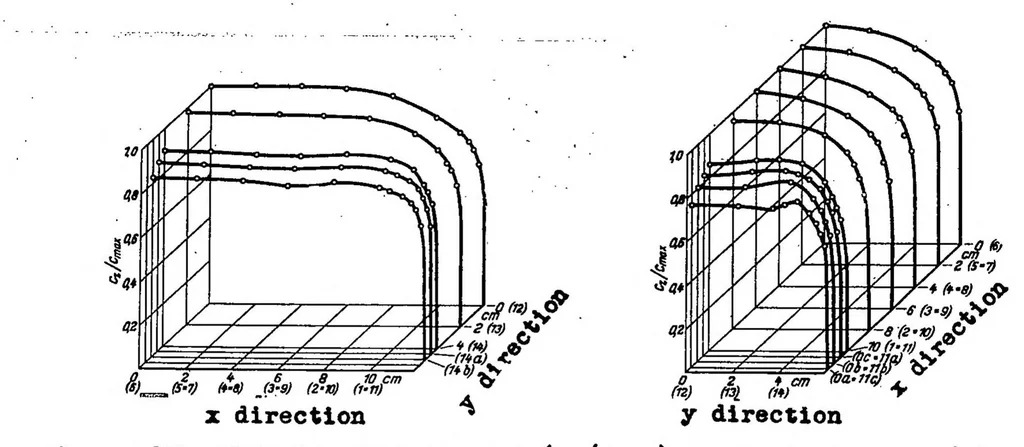

N.JLC.A. Technical Memorandum No. 903 Jlga.17,18,19,20,21,22,23,24,25,26 … Figure 17.- Velocity distribution (c^Cjj^) in the horizontal (x) and vertical (y) measuring planes in cross section 0 of the transitions R—> C(I) and R—»>C(II). c,^ = 19.5 m/s (for the figures in parentheses see fig. 12).
