Ignition and Flame Development in the Case of Diesel Fuel Injection (1936)
NASA Technical Reports Server (NTRS) · leaf 41

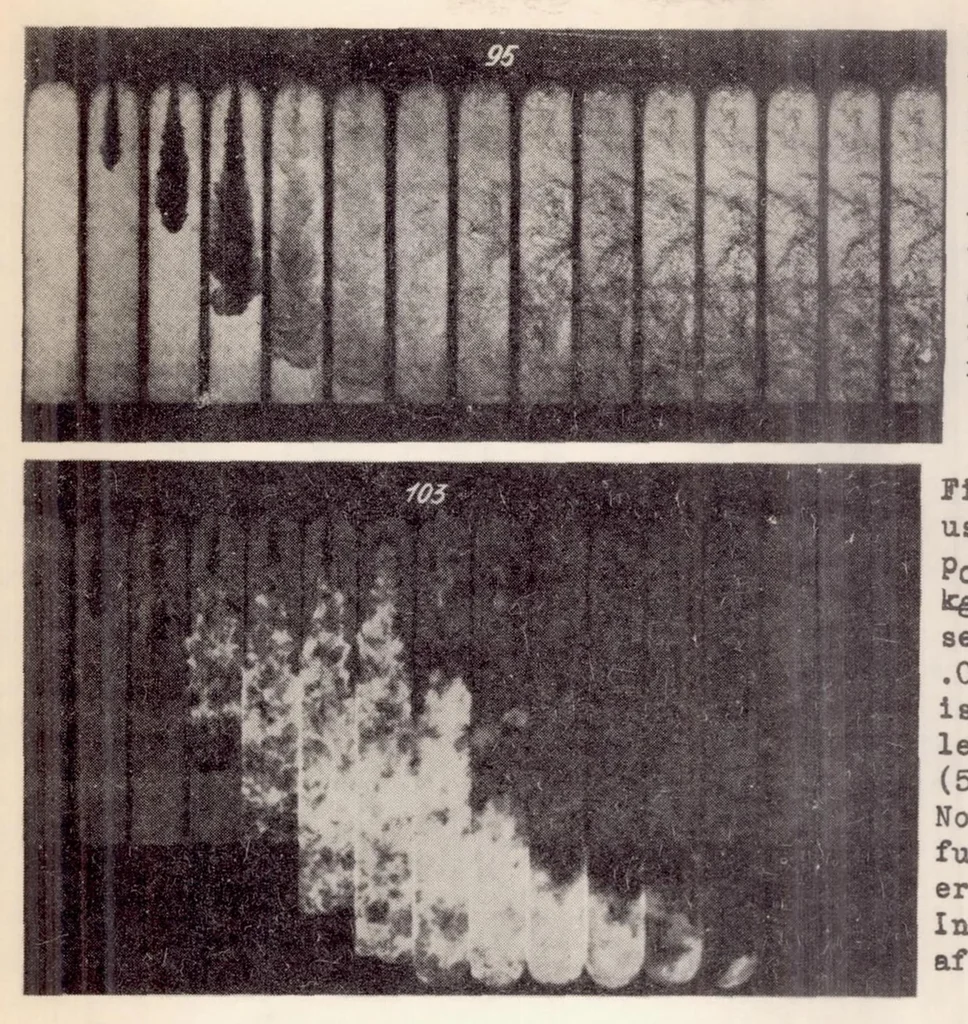

N.A.C.A. Technical Memorandum Ho* 790 Jigs. 26,27,28 … Figs,26 and 27.- Injection with Bosch single orifice needle valve. Orifice diara. 0.5 mm. type DL0SV244. Gas oil used, PE * 300 at. np = 345 r.p.m. Fig. 28.- Injection against impact plate placed 10 cm. from notfle open- »M Ga8 011 use(LPE * 330 at- *p * 3*5 r.g.m. Test no. 77. VB - 240 am3. pc «…NASA Technical Reports Server (NTRS)
Internet Archive · NASA Technical Reports · Public domain (US government work). Free to use for anything.
