Pressure Rise, Gas Vibrations and Combustion Noises During the Explosion of Fuels (1933)
NASA Technical Reports Server (NTRS) · leaf 22

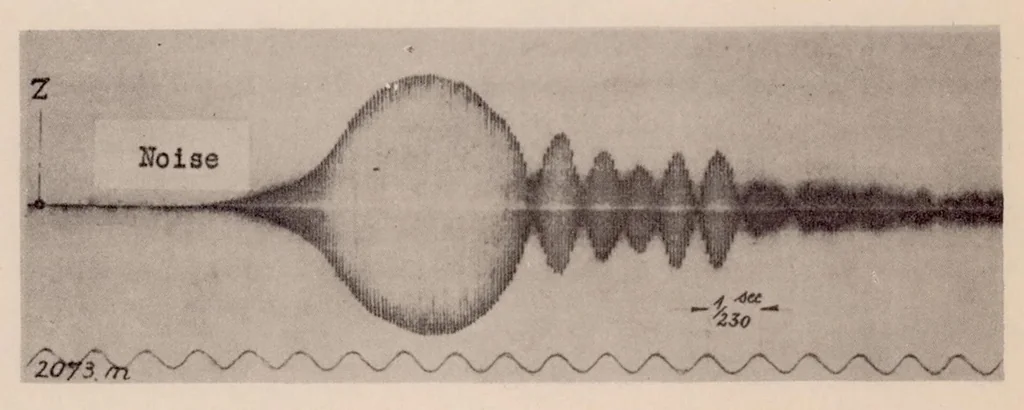

Pigs* 11,12,13 7.A«C.A. Technical Memorandum Ho .Til Figure ll.-Noise diagram of a mechanically struck, thin- walled homh with comhustion chamher 13«8 cm long« Natural -vihratlon frequency v= 5500/sec* … Figure IS.-Comhustion noise in thin-walled homh with comhus- tion chamher 13«8 cm long. Noise frequencies= 3300/sec* Figure 13.-Combustion noise in homh with comhustion chamber 19.7 cm long. Noise frequencies: Vx= 2300/sec*; V2= 4000/sec*NASA Technical Reports Server (NTRS)
Internet Archive · NASA Technical Reports · Public domain (US government work). Free to use for anything.
