Knowledge Gained from Practical Experience in the Designing of Aircraft Engines (1933)
NASA Technical Reports Server (NTRS) · leaf 44

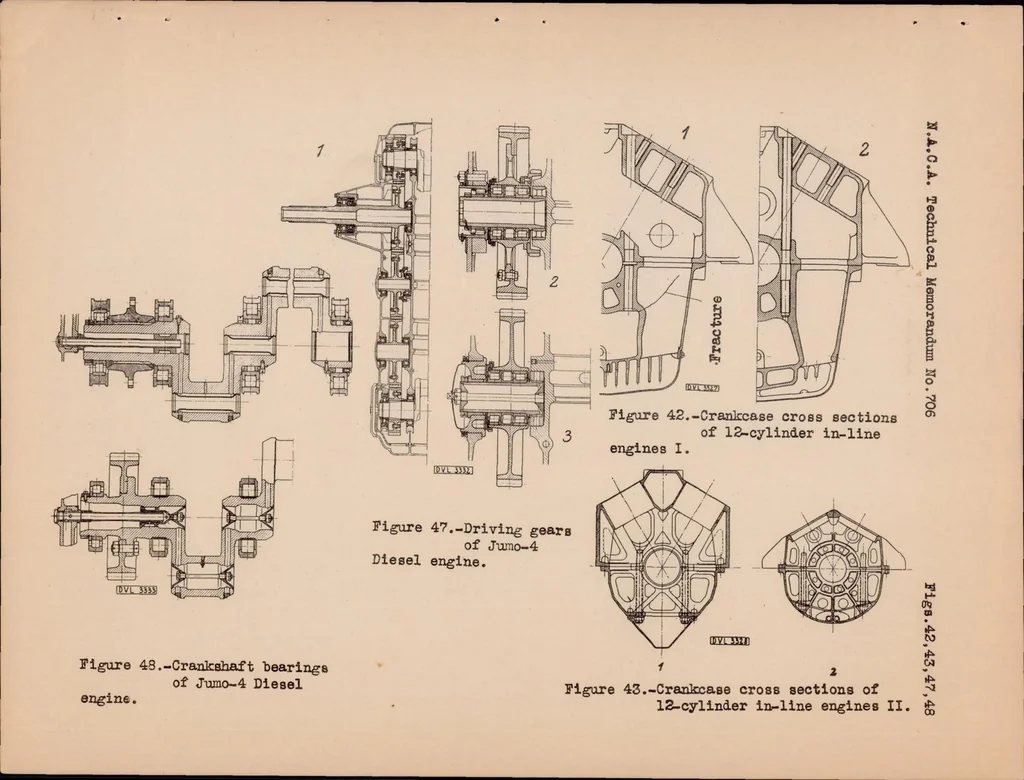

Figure 42,-Crankcase cross sections 3 of 12-cylinder in-line engines I. Figure 47.-Driving gears of Jumo-4 Diesel engine. 1DVL 33*31 ID Vl OBI Figure 43.-Crankshaft "bearings of Jiamo-4 Diesel Figure 43.-Crankcase cross sections of engine. 12-cylinder in-line engines II,NASA Technical Reports Server (NTRS)
Internet Archive · NASA Technical Reports · Public domain (US government work). Free to use for anything.
