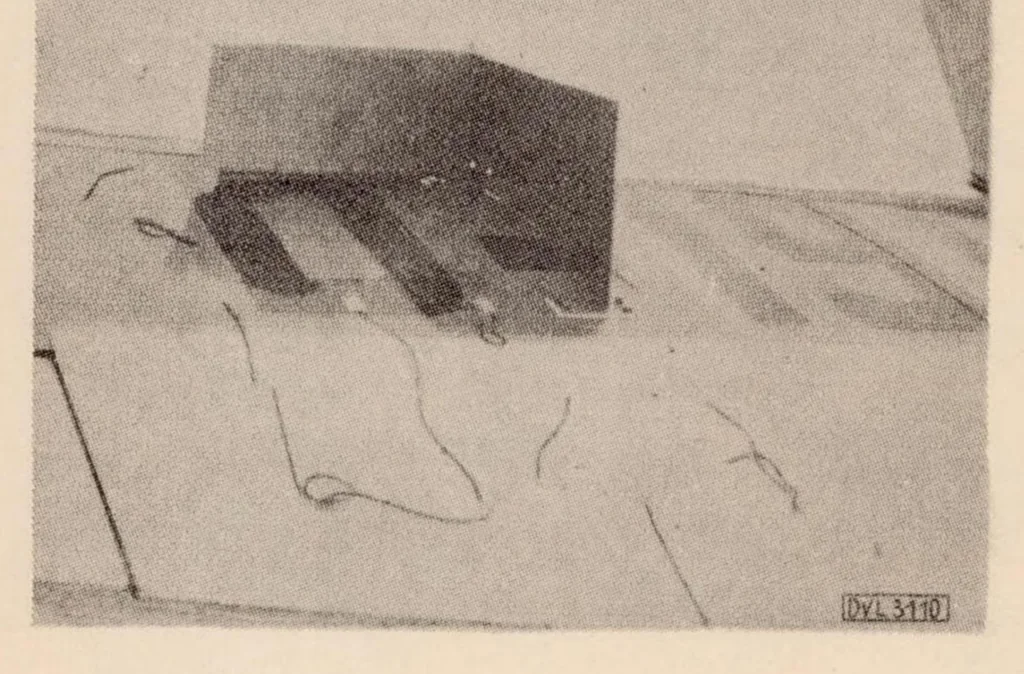

N-A.C-A. Technical Memorand-om No.697 Pigs.1.2,5 Fig.l Design and mounting of one wing rudder ("bi) on a BFW-M 23^ in neutral setting. Dimensions: height 0.15 m (.49 ft.), depth 0.14 m (.46 ft.). Total resistance area for "both rudders ex- tended. 0.12 m2 (1.29 so.ft.) (Total wing area 14.2 m^),… … Fig.5 Comparative record of time rate of change of air pressure at different equilihrium-dynamic pressures. a . Neutral h , (Design t^) fully extended q^, 102 km/h (63.4 m.p.h.) a, (Design \) neutral setting 02, 130-132 km/h (80.8-82.0 m.p.h.) h, (Design h^) fully extended qg. 115-117 km/h (71.5 -…
