Stresses Produced in Airplane Wings by Gusts (1932)
NASA Technical Reports Server (NTRS) · leaf 53

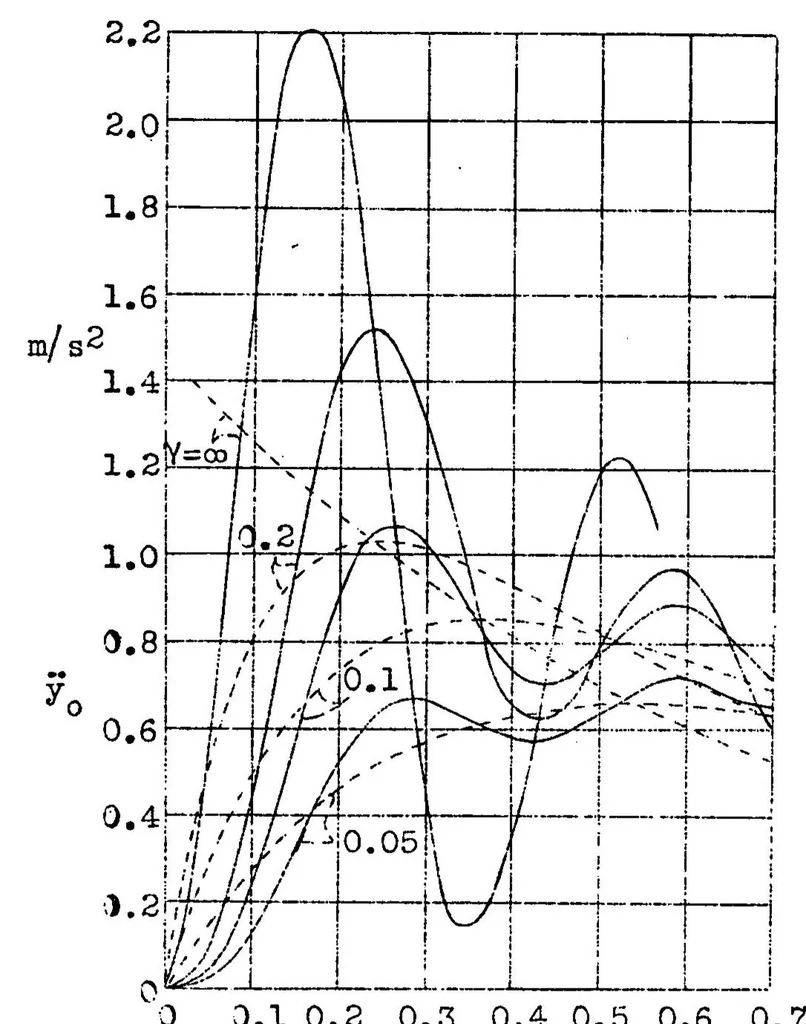

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 Time, s Time,s Fig. 41 Junkers J 49 yig. 40 Juiikers & 34 Figs. 40,41 Time rate of stresses of elastic (full line) and rigid(dash line) wings in ver- tical gasts with asymptotic rise of velocity, plotted against gast gradient Y. vertical…NASA Technical Reports Server (NTRS)
Internet Archive · NASA Technical Reports · Public domain (US government work). Free to use for anything.
