On Atomization in Carburetors (1931)
NASA Technical Reports Server (NTRS) · leaf 11

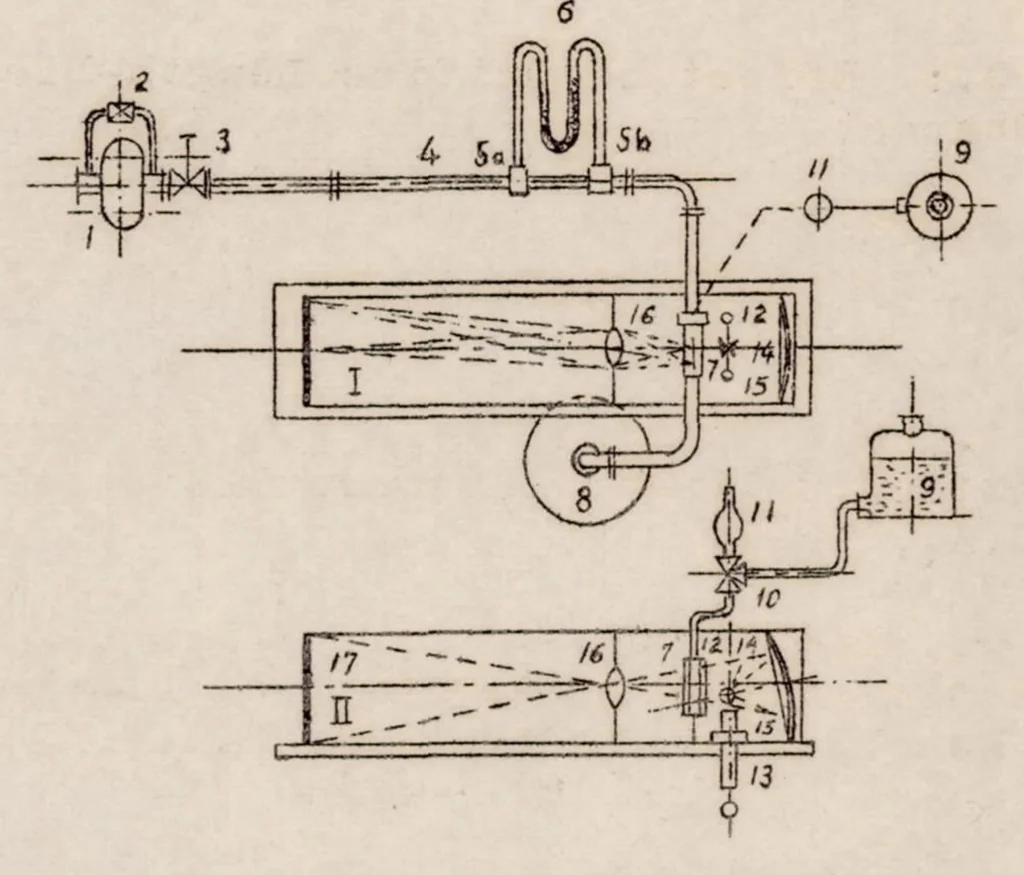

•N.A.C.A. Technical Memorandum No. 644 Fig. 1 6 … Fig, 1 Schematic sketch of apparatus• I Plan view II Side view 1, Blower 10, Three-way cock 2, By-pass valve (for fine regulation) 11, Measuring vessel Check valve (for coarse regulation) 12, TvJDe to carburetor model 4» Jacc'b-tu'b'j 13, Ki{^,h voltage arrangement 5a, 513, Pressure-measuring…NASA Technical Reports Server (NTRS)
Internet Archive · NASA Technical Reports · Public domain (US government work). Free to use for anything.
