Riveted joints in thin plates (1930)
NASA Technical Reports Server (NTRS) · leaf 17

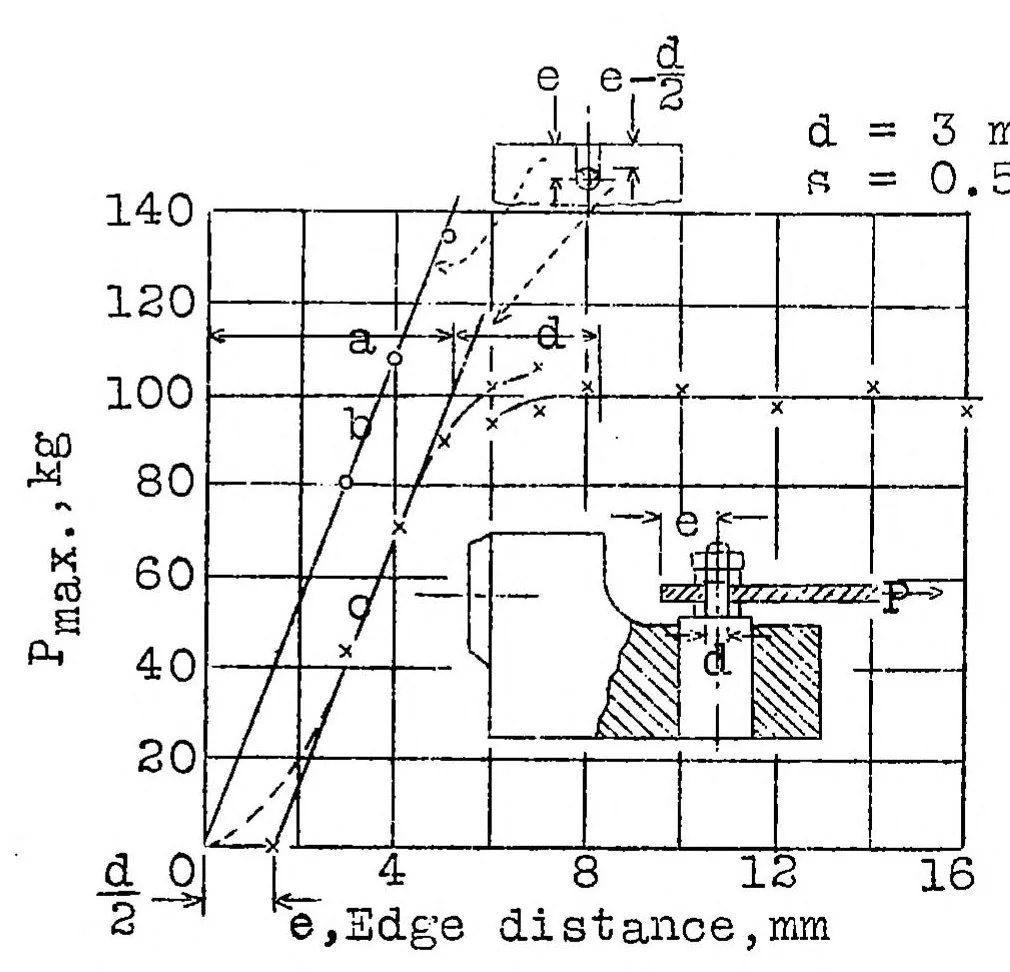

N.A.0-A.Technical Memorandum Ho.590 Figs.2,3 400 300 a, Break in rivet b, 0.8 mm . c, 0alculated,TB=21.3 kg.A™ 200 d, 0.6 mm e, 0.5 mm f, 0.2 mm 100 12 3 4 d,Rivet dia.,mm Fig.2 Ultimate stress diagram. … Fig.3 Effect of edge distance.NASA Technical Reports Server (NTRS)
Internet Archive · NASA Technical Reports · Public domain (US government work). Free to use for anything.
