Flight Tests on the Lateral Control of an Airplane having a Split Flap which Retracts Ahead of Conventional Ailerons, Special Report (1933)
NASA Technical Reports Server (NTRS) · leaf 7

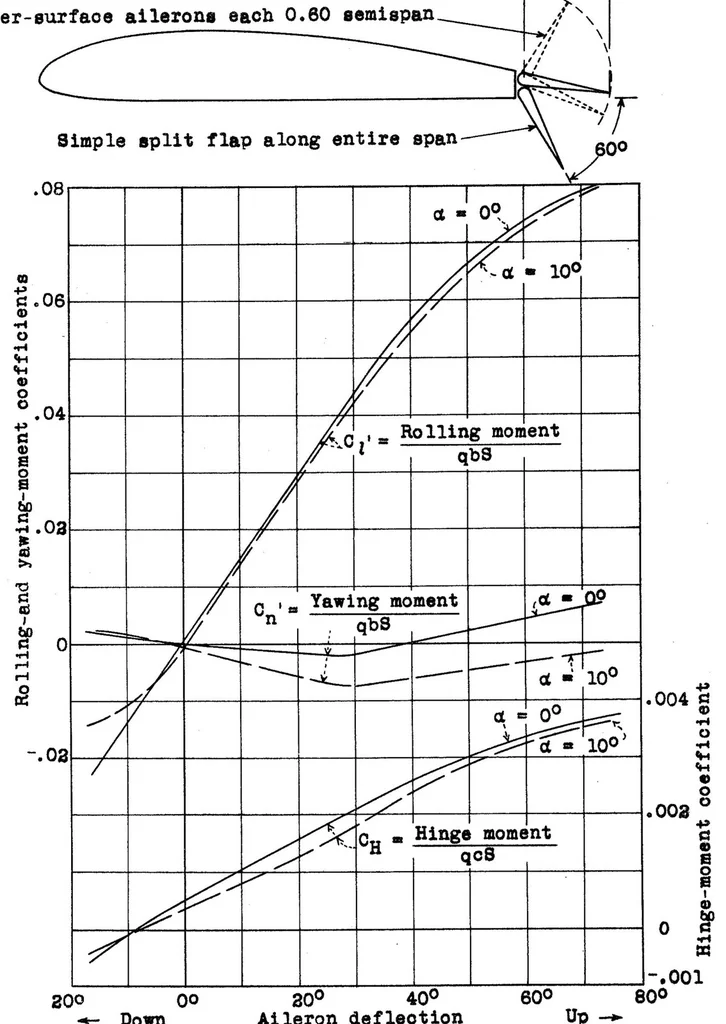

Fig. 3 H.A.C.A. 0.150- … Up-* Aileron deflection Down Figure 8.- Wind-tunnel test results with upper-surfaoe ailerons and split flaps*NASA Technical Reports Server (NTRS)
Internet Archive · NASA Technical Reports · Public domain (US government work). Free to use for anything.
