Wing-Nacelle-Propeller Tests - Comparative Tests of Liquid-Cooled and Air-Cooled Engine Nacelles (1934)
NASA Technical Reports Server (NTRS) · leaf 14

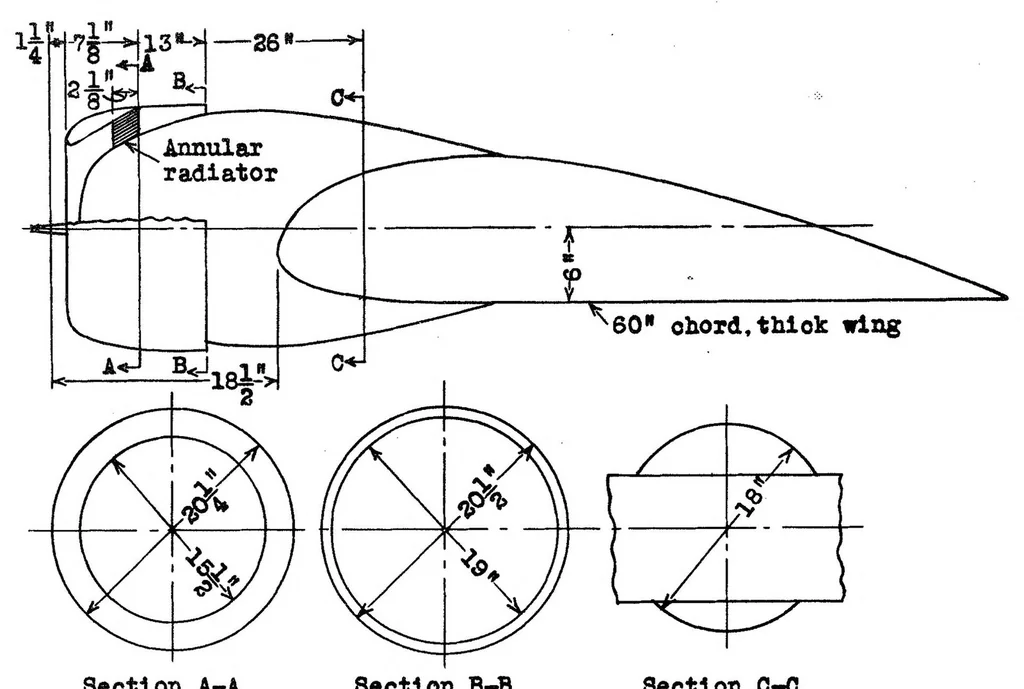

Figs. 3,4 … Section A-A Section B-B Section 0-0 Figure 3.- Wing and liquid-cooled engine nacelle with radiator in N.A.O.A. cowling. Section A-A Section B-B Figure 4.~ Engine enclosed in wing with extension propeller shaft.NASA Technical Reports Server (NTRS)
Internet Archive · NASA Technical Reports · Public domain (US government work). Free to use for anything.
