Definition of Method of Measurement of Supporting and Control Surface Areas, Special Report (1931)

NASA Technical Reports Server (NTRS) · leaf 3

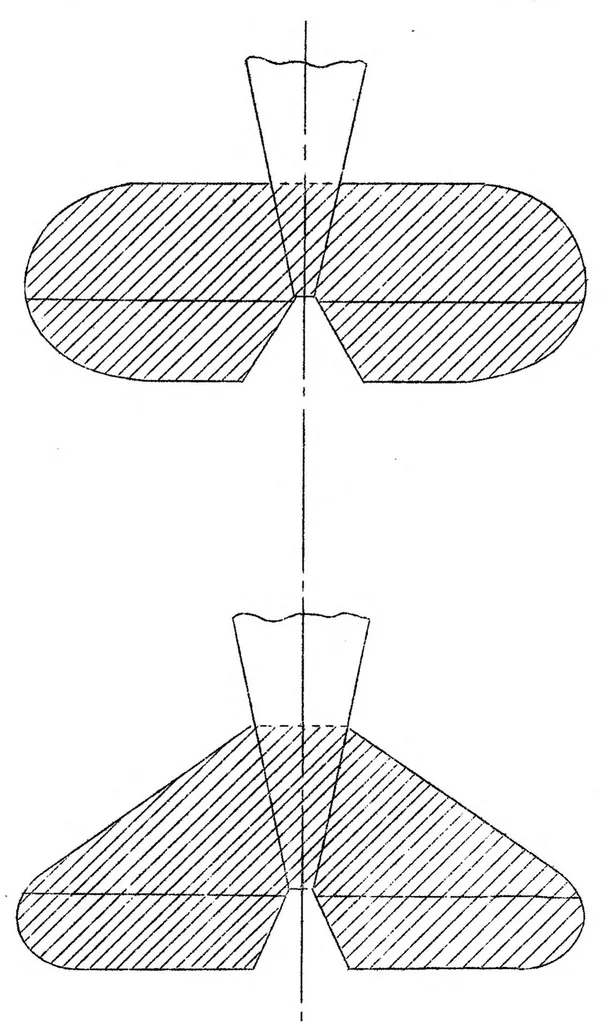

An illustration from Definition of Method of Measurement of Supporting and Control Surface Areas, Special Report, 1931, leaf 3
STMDiffiD METHOD 01" MMSUEIHa HOEIZOlITil TAIL AREA. Horizontal tail area is crosshatched … Pig.2

NASA Technical Reports Server (NTRS)

Internet Archive · NASA Technical Reports · Public domain (US government work). Free to use for anything.
