Relative Efficiencies and Design Charts for Various Engine-Propeller Combinations, Special Report (1936)
NASA Technical Reports Server (NTRS) · leaf 57

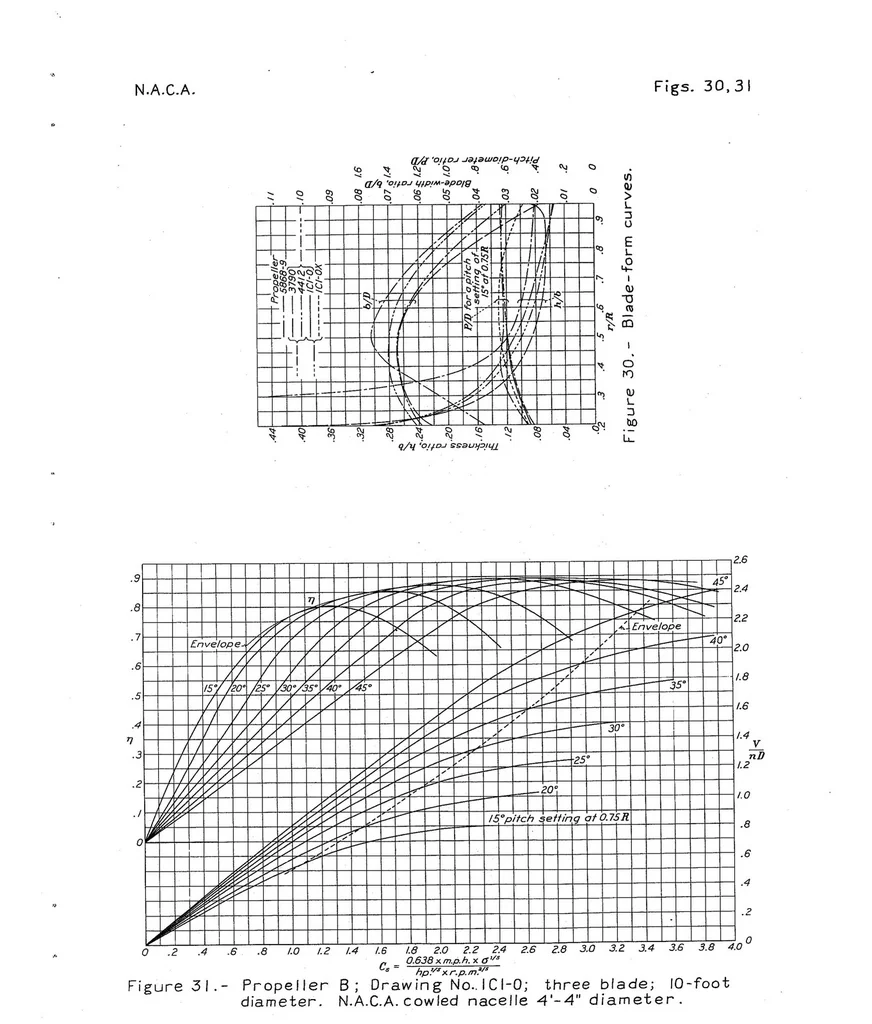

Figs. 30,31 N.A.C.A. Figure 31.- Propeller B; Drawing No., i C1-0; three blade; 10-foot diameter. N.A.C.A. cowled nacelle A'-A" diameter.NASA Technical Reports Server (NTRS)
Internet Archive · NASA Technical Reports · Public domain (US government work). Free to use for anything.
