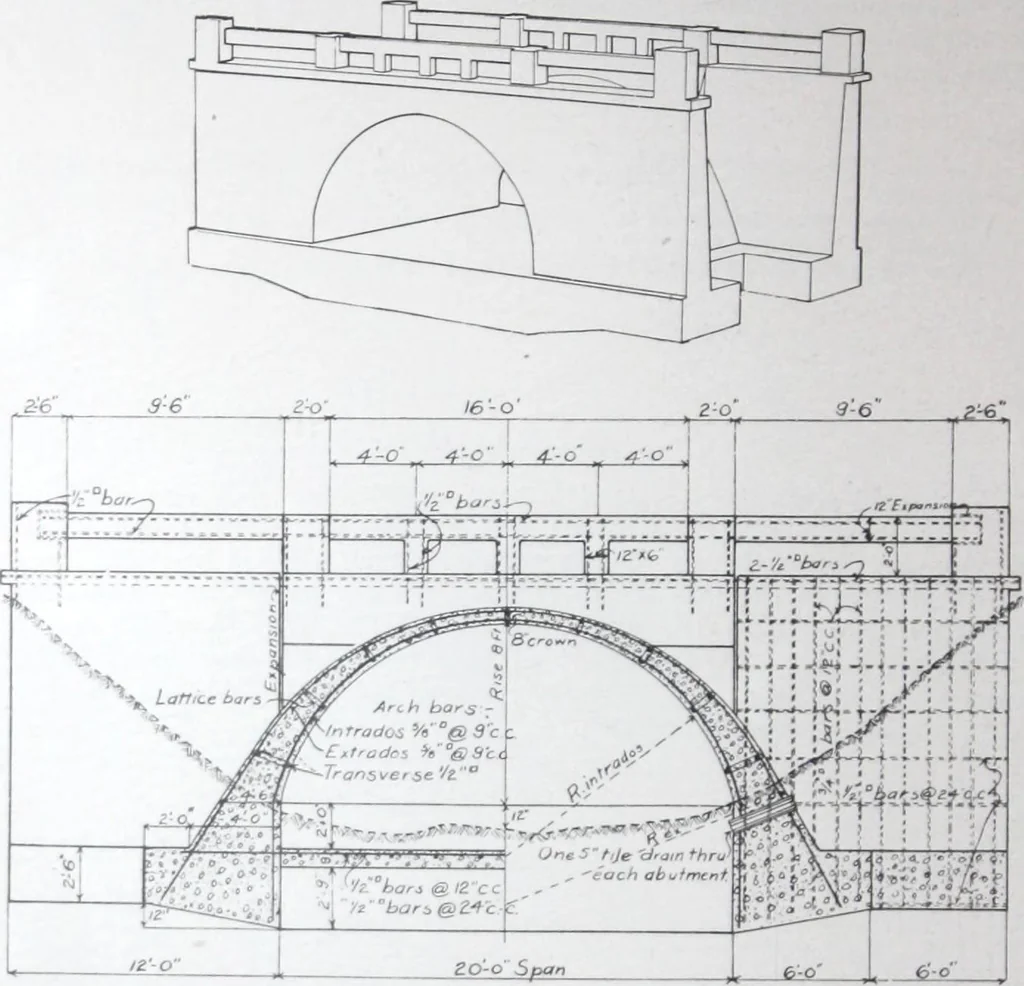

shown parallel to the axis of the roadway and are reinforced. This archis not semi-circular as it is only given an 8-ft. rise in 20-ft. span. Design may be used with or without pavement, apron wall to beconstructed in either case. Transverse arch bars to be fastened with V/2X V£ in. lattice bars as… … General Elevation
