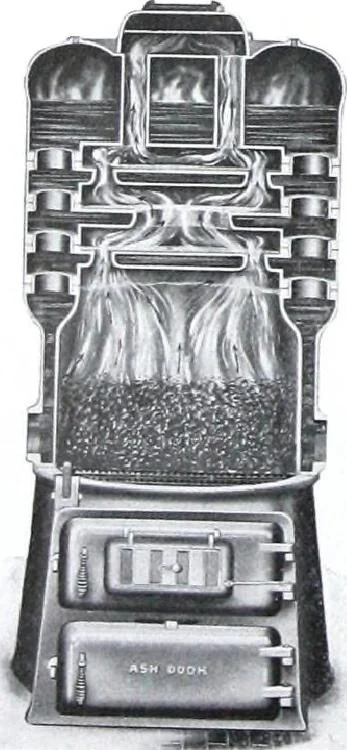

Sectional View of S. 36-S. ■ROYAL Ste.^m Boiler ;i … ROYAL SQUARE SECTIONAL STEAM AND WATER BOILERS. HEATING SURFACE.Note the arched Fire Chamber and extended overhanging heating =^f=- FIRE TRAVEL. Observe the triple fire travel on both sides of the Boiler, also thecross fire channels between each section. This Boiler is so constructed that a perfect…
