Steel transmission structures and catenary bridges. (1914)
Archbold-Brady Co. · Archbold-Brady Co. · leaf 9

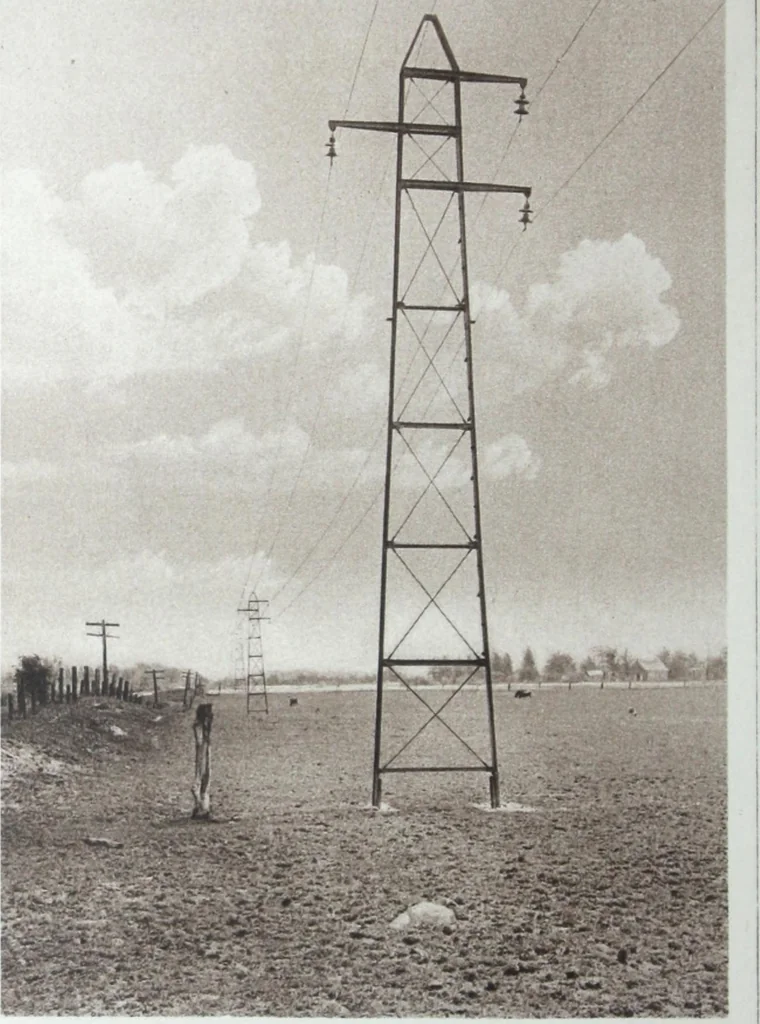

NIAGARA FALLSPOWER COMPANYS line described on the opposite page. The Towers areset so that their transverse axis bisects the angle in the line. The most effective use of the material in the Tower and foundation isattained by setting the Tower in this position, the strain of the angle beingdivided… … A FRAME LINE IX INDIANATransmission line of the MUNCIE ELECTRIC LIGHT COMPANY,from Muncie to Alexandria, a distance of Is miles. The ground wire i- , in.3-strand hiuli strength-uvl. Tin-transmission cables an No I B. & S. G 3strand cable*. I lie standard span i- 3*0 ft., maximum 420 ft. The…
