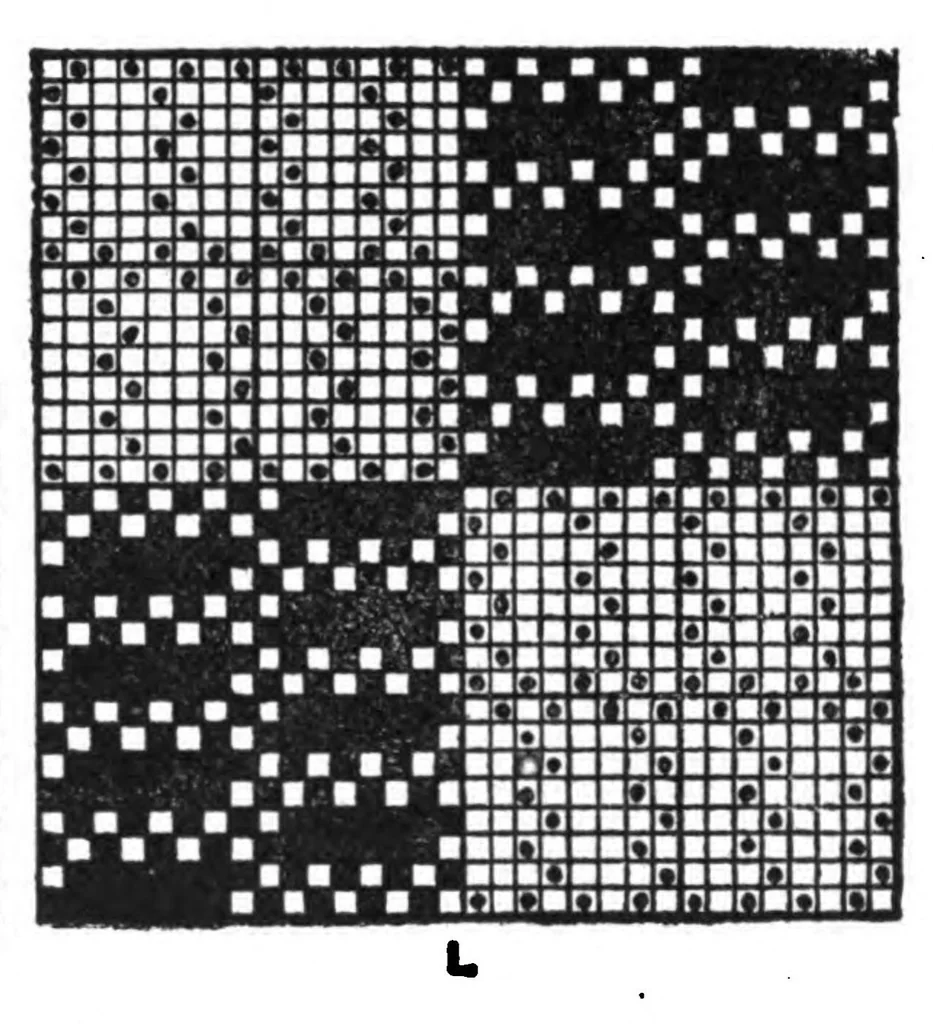

warp sateen, except where the horizontal lines are formed. The plan J in Fig. 117 shows how the weaves are arranged, the 5-thread warp sateen being crossed by a 10-thread weft sateen weave (indicated in the upper portion of J) where the special picks are inserted. The cloth contains nearly twice as… … Fig. 117. the example the weft sateen is carried across the corresponding colours in the warp, the arrangement enabling the design to be woven in a straight draft on ten healds. The warp weave might be carried through the corresponding weft colours, but this would complicate the draft and…
