Westinghouse Arc Lamps and Lighting Systems (1916)
Westinghouse Electric & Manufacturing Company · Westinghouse Electric & Manufacturing Company · leaf 18

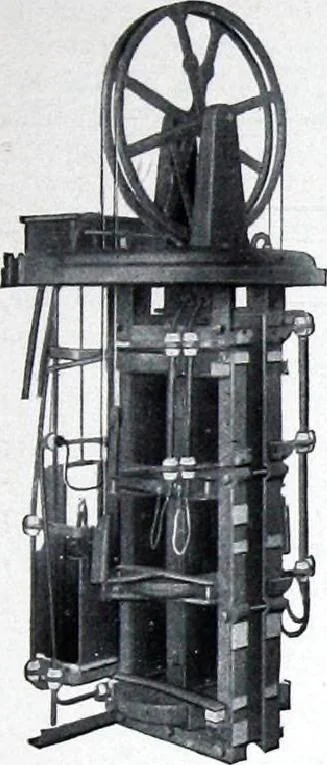

tor and the panel for the 25, 35, and 50-light outfits A fifth lead is brought out of the 75-light trans-former and oarried to the panel for starting piir-poses. The 100-light transformer has two 50-lightsecondary circuits and consequently has six leads. These leads are taken directly to the… … Transformer—The transformer is of the well-known repulsion type, depending for its currentregulation upon the repulsion existing between thefixed and movable coils. There are two primaryand two secondary coils; the primary coils arebalanced against each other, suspended by means ofsteel cables…
Street lighting · Arc lamps · Transformers · Electrical engineering · Lighting · Exterior Lighting · Low Voltage Electrical Transmission
