Wiremold catalog and wiring guide no. 22. (1960)

Wiremold Company · Wiremold Company · leaf 62

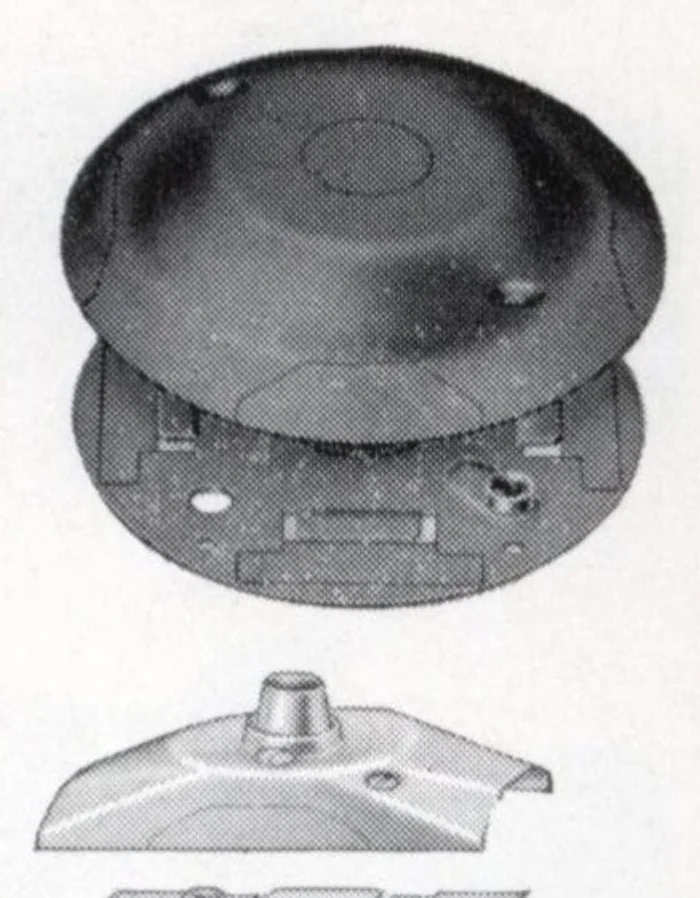

An illustration from Wiremold catalog and wiring guide no. 22., 1960, leaf 62 — SECTION F FITTINGS PANCAKE 1500 … clamp for B station tubing. Cover has two 1500 twistouts. 1543L DUPLEX RECEPTACLE 15A, 125V. 51^6" L. — Sj/fe" VV. — l-^fe" H. Floor convenience outlet for cord connections. Device has double T slots for all standard parallel (polarized) or tandem bhuk pin- caps 1543AL POLARIZED DUPLEX RECEPTACLE,…

Wiring equipment -- Division 26, electric conduits · Outlets · Lighting
