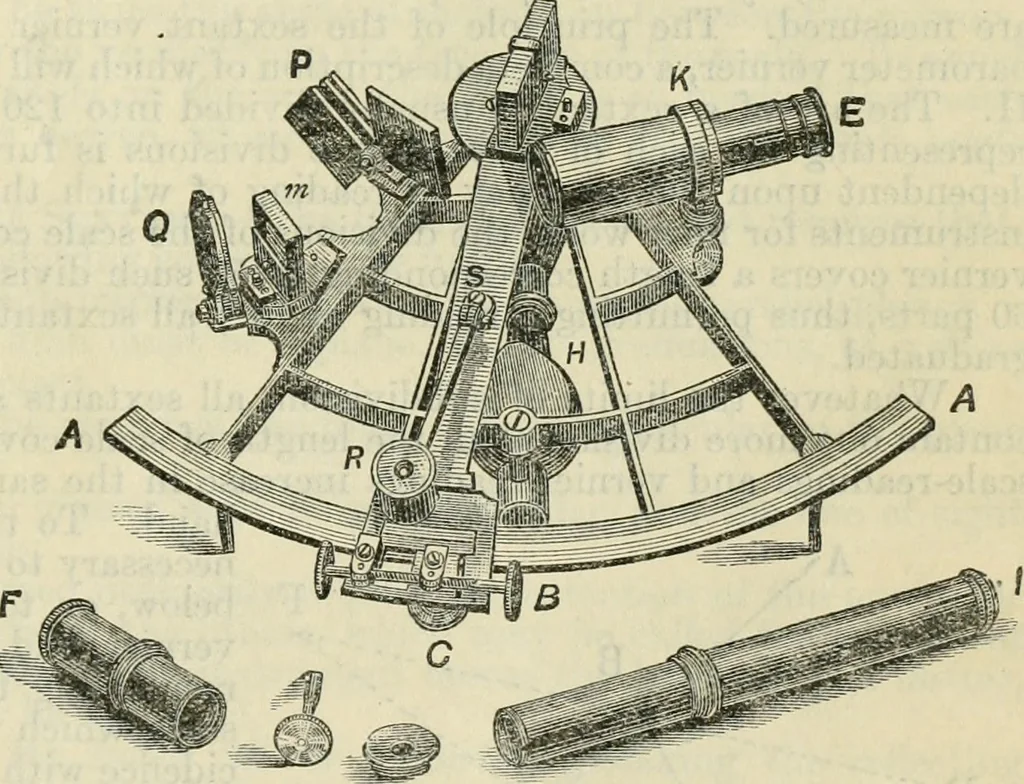

measure for any change of incHnation of the index mirror; a reading glass,R, attached to the index bar and turning upon a pivot, S, facilitates the reading ofvernier and scale. The index miiTor, M, is attached to the head of the index bar, mthits surface perpendicular to the plane of the… … Fig. 32. 92 INSTRUMENTS EMPLOYED IN NAUTICAL ASTRONOMY. horizon is observed in measuring altitudes of celestial bodies; it is provided vnth.screws, by which its perpendicularity to the plane of the instrument may beadjusted. At P and Q are colored glasses of different shades, which may be…
