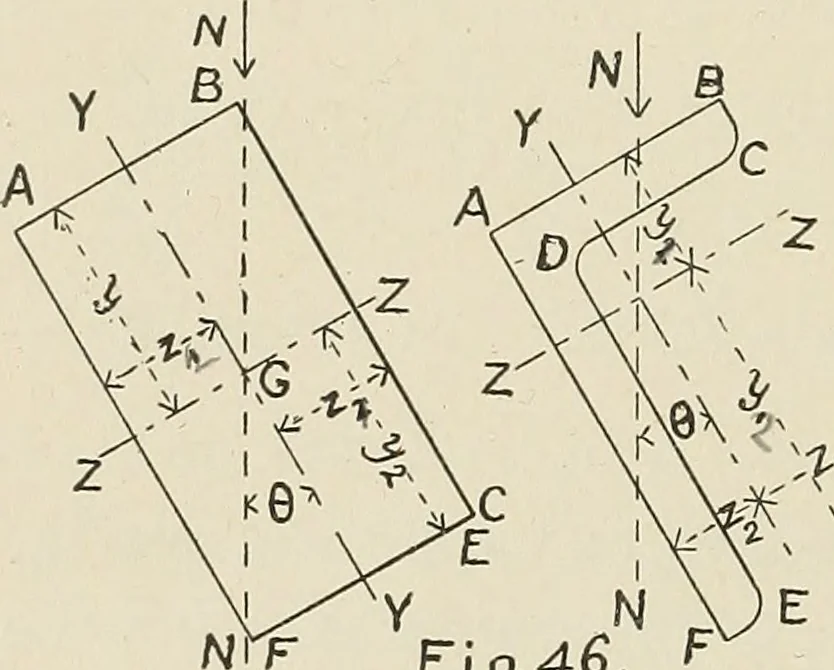

forces passes through the axis of thebeam but is not parallel to either h or b, the maximum valuesof/or the value of M max. can be found as follows:—Fig. 46.The section is A B E F; its centre of gravity is G; theplane of the applied forces and of flexure is N N; Y Y and Z Z are the usual… … bending moment of If M•^ the external torces at this section, the component in the plane of j/ will be M cos ^, and thatin the plane of z will be M sin 0. The unit-stress on thelayer A B from the former will be / = M cos Oj/^ -^ I^ andon E F, = M cos Oj/^ -^ I^ . The stress on B C from the lat-ter…
