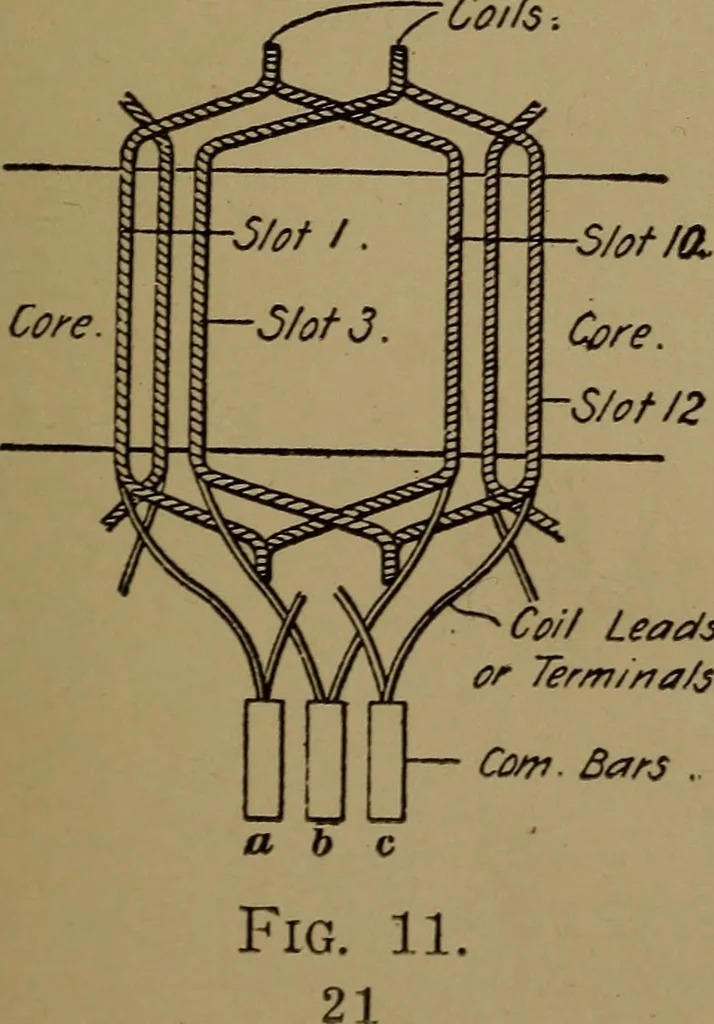

connected to thecommutator or one under each pole piece to distributeand collect the current equally. Drum-wound armatures are found by wrapping thecoils around the entire armature in the same way aswrapping string around a ball. The style of winding used in most electric machinesat the present… … Co// Leads7erm/rra/j. Com. Bars . Actions of Electricity. slotted and the conductor coils are laid in the slots ingroups; a multiple-wound armature coil can be tracedby starting at commutator bar a (Fig. 11), through slotNo. 1 under, say, a north pole, then horizontal withthe ring of the armature…
