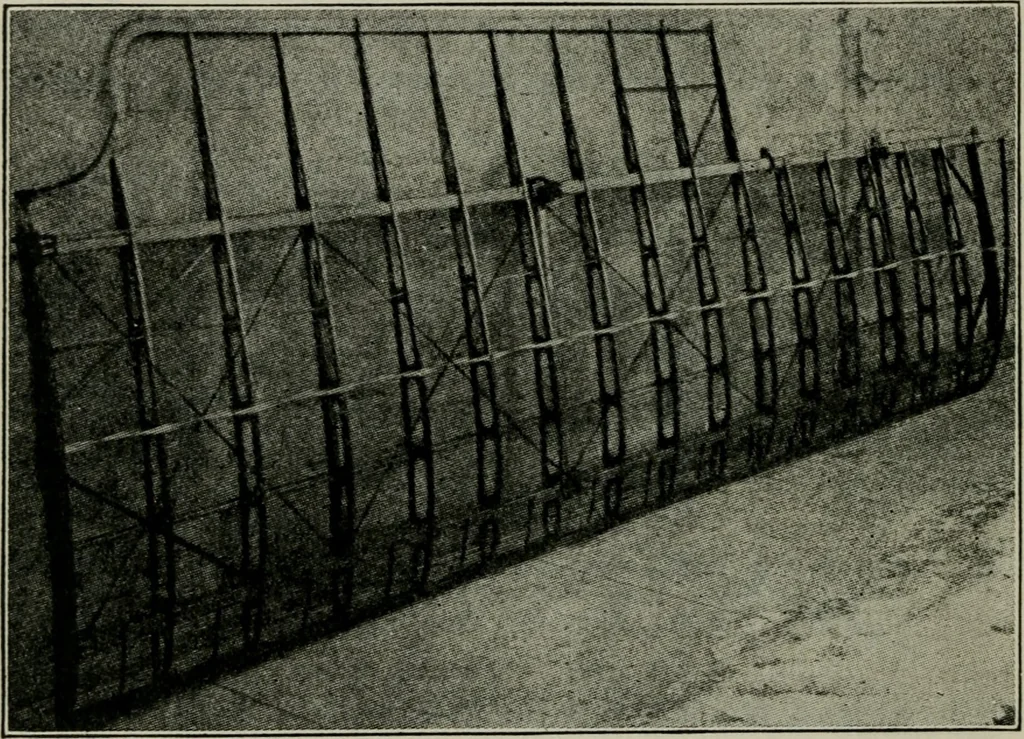

coming next to the body. As this is a lower wing, 200 WING CONSTRUCTION the sockets for the attachment of the interplane struts canbe seen on the upper and near edges of the main spar.Between the spars are very thin wood strips runningwith the length of the wing. These are the Battensused for… … Fig. 8. Typical Biplane Wing. Gap for Aileron Shown at Right End ofWing. Left End Rests Against Fuselage, the Observation PortBeing Cut Out at the Upper Left Ha«d Corner. Drag Wire Brac-ing Clearly Shown. Courtesy Aerial Age. necessary. The drag-bracing cables cross three rib spaces,or are fastened…
