Aeroplane construction and operation; including notes on aeroplane design and aerodynamic calculation, materials, etc. A comprehensive illustrated manual of instruction for aeroplane constructors, aviators, aero-mechanics, flight officers and students. Adapted either for schools or home study (1918)
Rathbun, John B · Chicago : Stanton and Van Vliet Co. · leaf 219

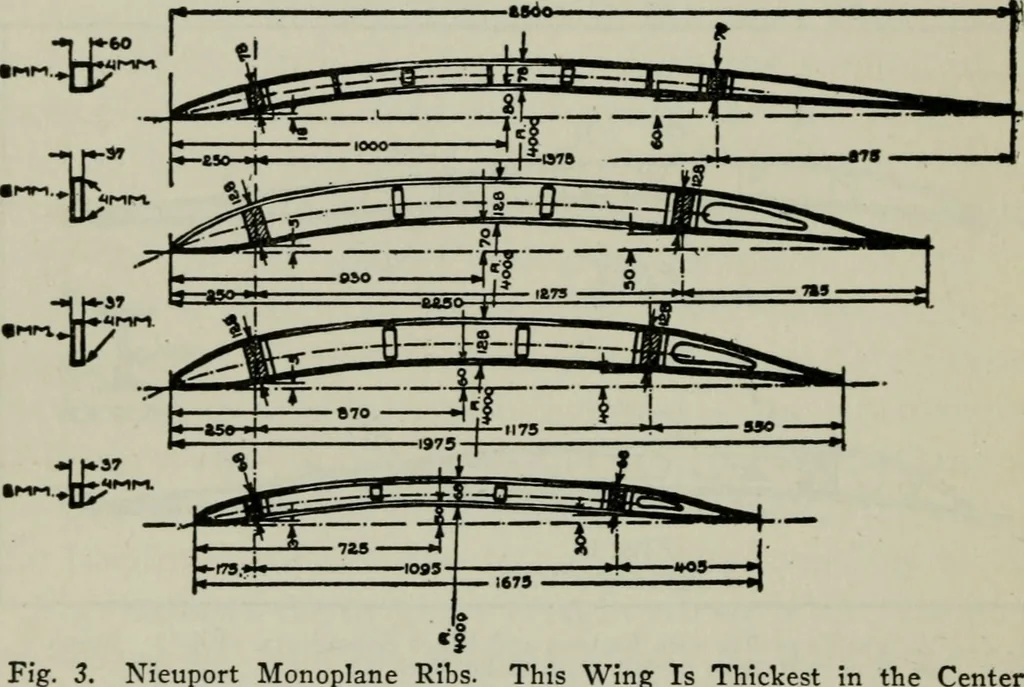

e other two 212 WING DETAILS are near the tips, the bottom being the last rib at theouter end. The ribs shown are of box form as they areat points of connection, but the intermediate ribs are ofthe T type shown by Fig. 2. Rib Material. In American aeroplanes, the flanges ofthe ribs are generally… … Nieuport Monoplane Ribs. This Wing Is Thickest in the Centerand Washes Out Toward Either End, Thus Making All of the RibsDifferent in Curvature and Thickness. At the Point of Stay WireAttachment Double Webbed Box Ribs Are Used. many ribs in a wing assembly lightness is a primaryconsideration. A few…
