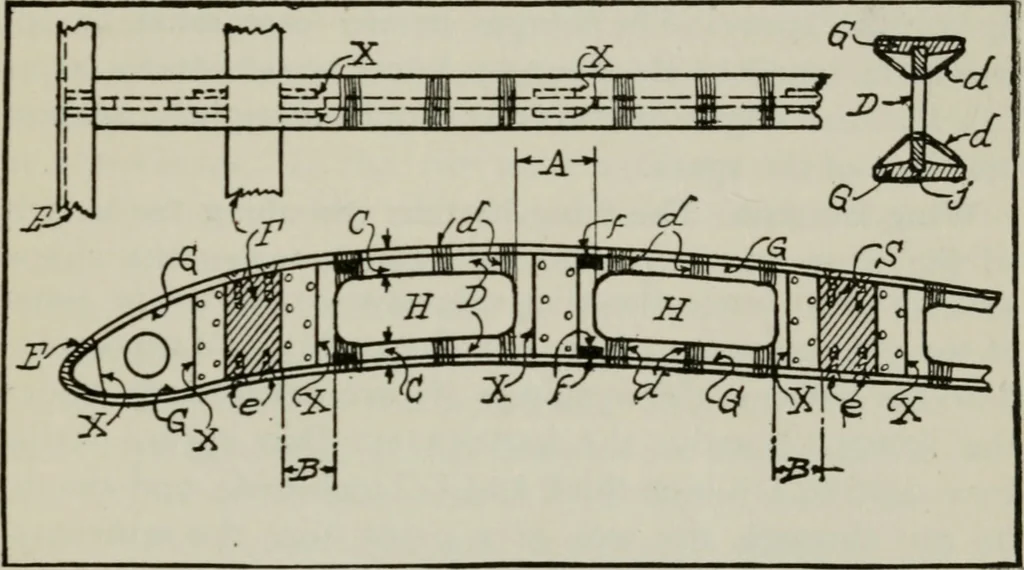

such as at the frontand rear spars, and at points between the lightening holes.By gluing thin strips to the webs (in a vertical direc-tion), and so that the tops and bottoms of the strips cometight against the upper and lower flanges, a great dealof the strain on the web can be avoided. The… … Fig. 4. Details of I Type Rib, Showing Lightening Holes and Stiffeners., it will be seen that the web is inserted into a groove cutin the flanges and is then glued into place. It would beunsafe to trust entirely to the glue, owing to the effects ofaging, moisture and heat, and consequently some…
