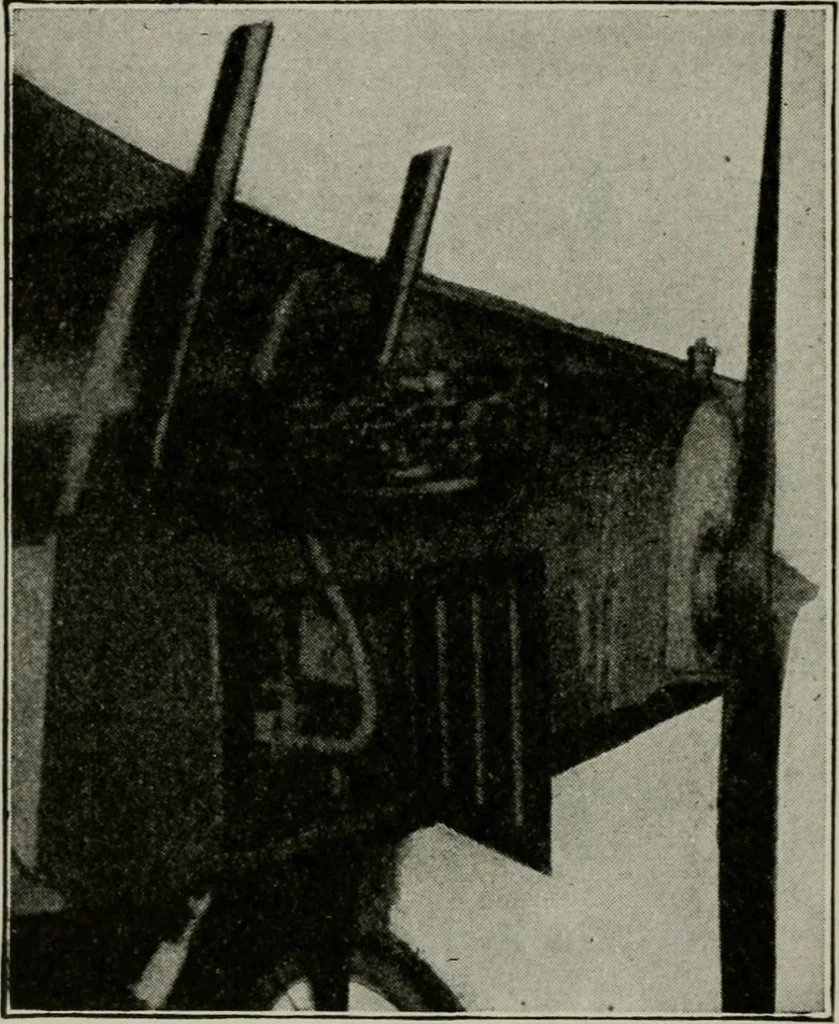

own low in the frame, the upper part ofthe fuselage F ending at H. The engine bearer B, which 23-i FUSELAGE CONSTRUCTION carries the motor, forms the top part of the fuselage at thispoint. The engine is thus in the clear and access caneasily be had to every part of the motor. The radiatoris in… … Fig. 5. Motor Compartment of a Curtiss Tractor Biplane Using a Front TypeRadiator. Note the Two Exhaust Pipes Which Carry the GasesOver the Top of the Wings. Fig. 7 is a very common front end arrangement usedwith side radiators. The top fuselage member F isbrought down in a very low curve, leaving…
