Aeroplane construction and operation; including notes on aeroplane design and aerodynamic calculation, materials, etc. A comprehensive illustrated manual of instruction for aeroplane constructors, aviators, aero-mechanics, flight officers and students. Adapted either for schools or home study (1918)
Rathbun, John B · Chicago : Stanton and Van Vliet Co. · leaf 282

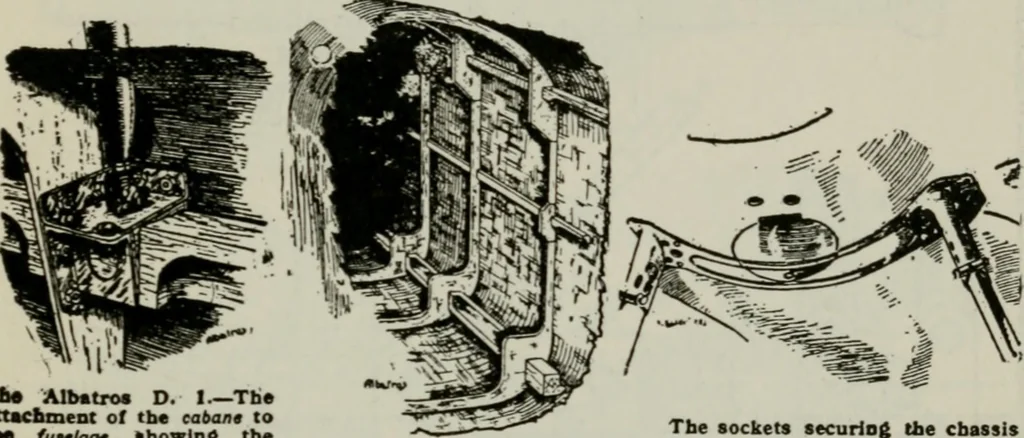

e driftwires (C) of the wings are attached to an eye at the endof one of the wing spar bolts. As shown, the fitting (H)is a steel forging, very carefully machined and reduced inweight. The inside wing ribs are indicated by (K), fromwhich it will be seen that there is a gap between the endof the… … Th« AIb«tpo« D. I—Th«attachment of the eabant totbm fuMlage, •howing tb«adjustment for altera-ttpa of atagfter. The sockets securing tfae chassisstruts to the futelage. The stmtsmay quickly be detached byloosening the bolts on the sockets. The futelage constmctioa.Fig. 36-a. Details of Albatros…
