Aeroplane construction and operation; including notes on aeroplane design and aerodynamic calculation, materials, etc. A comprehensive illustrated manual of instruction for aeroplane constructors, aviators, aero-mechanics, flight officers and students. Adapted either for schools or home study (1918)
Rathbun, John B · Chicago : Stanton and Van Vliet Co. · leaf 412

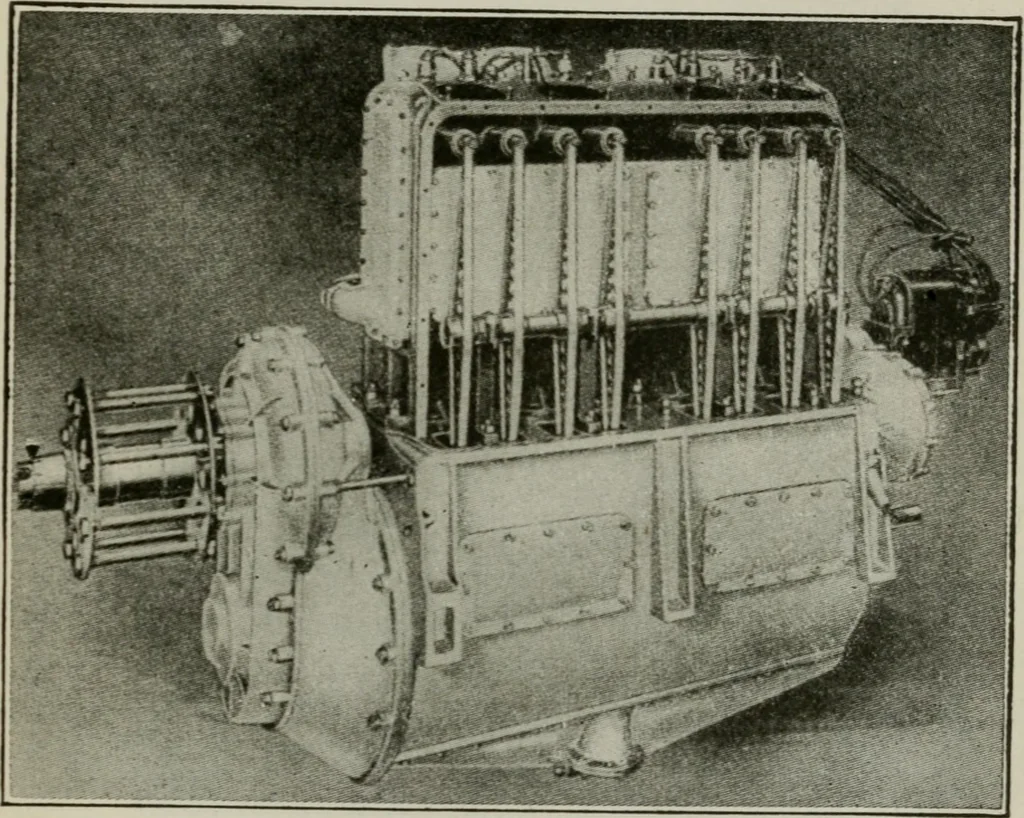

ins to enter through the exhaust valve and con-tinues to flow until the valve closes at 65° below the bot- AIOTORS 39f) torn center. Still descending, the piston forms a partialvacuum in the cylinder, until at 2° before the lower cen-ter the piston opens the ports and a very rich mixture isdrawn in… … uction Gear, Fouralve Motion. Dusenberg 4-Cylinder Vertical Water Cooled Motor With Redvalves Are Used Per Cylinder. Note Peculiar Valvi the ports and compression begins. The mixture entersthe crank case through a hollow shaft, with the fuel jetsnear the crank throws. A timed fuel pump injects the…
Airplanes
