Aeroplane construction and operation; including notes on aeroplane design and aerodynamic calculation, materials, etc. A comprehensive illustrated manual of instruction for aeroplane constructors, aviators, aero-mechanics, flight officers and students. Adapted either for schools or home study (1918)
Rathbun, John B · Chicago : Stanton and Van Vliet Co. · leaf 87

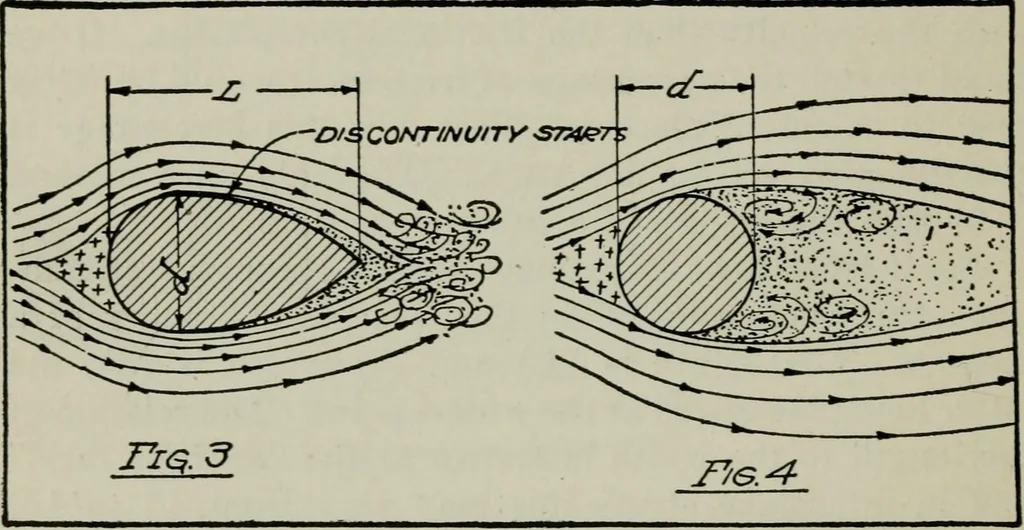

he same area, then the relation between the resistance ofthe flat plate, and the strut will be expressed by the formulaR/D = 4L/300d, where L = length of section and d =width as in Fig. 2. This can be transposed for conven-ience, by assuming the drag of a flat plate as D =0.003AV^ where A = area in… … Fig. 3. Imperfect Streamline Body with a Considerable Tubulence Due tothe Short, Stubby Form. Fig. 4 Shows the Flow About a CircularRod or Cylinder. resistance = R = O.OOSAV^ X 4L/300d. = 0.012LAVV300d. It should be understood that the area mentionedabov5 is the greatest area presented to the wind…
Airplanes
Internet Archive · California Digital Library · Public Domain Mark 1.0. Free to use for anything.
