Aladdin Manual of construction : containing practical methods covering every step necessary in the erection of Aladdin houses, barns, garages, etc. / prepared and illustrated by David S. Betcone (1918)
Betcone, David S, Aladdin Company · Bay City, Mich. : Aladdin Co. · leaf 134

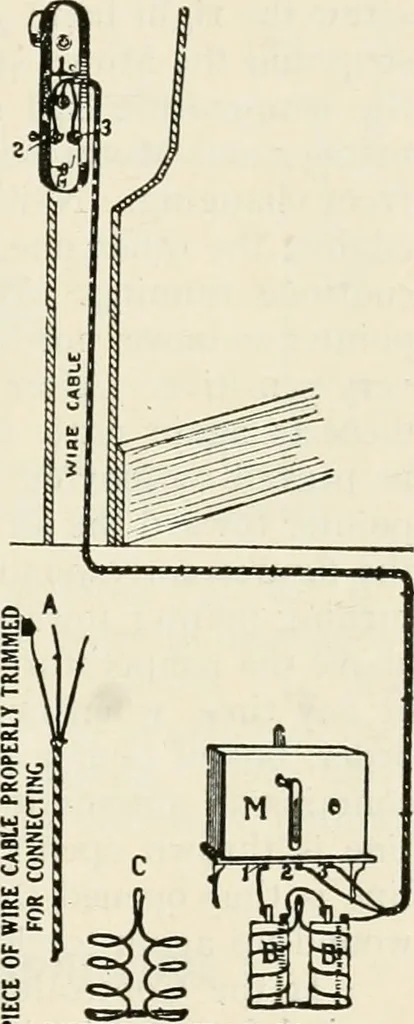

absolutely necessary to accomplish the sameFor if the bare wire touches the metal of Controller or another bare wire itforms a short circuit, causing the motor to run continuously until run down. Run cable from back of Controller connecting wires to posts 1, 2, 3, (seeFig. 104), to battery located… … 134 ALADDIN MANUAL OF CONSTRUCTION remaining carbon to post 1 of Motor. Run wires from post 2 and 3 of Con-troller to post 2 and 3 of Motor. Adjusting the Controller After Regulator has been applied wind the Motor clear up and adjust theController as follows: Turn the knob on Controller until…
