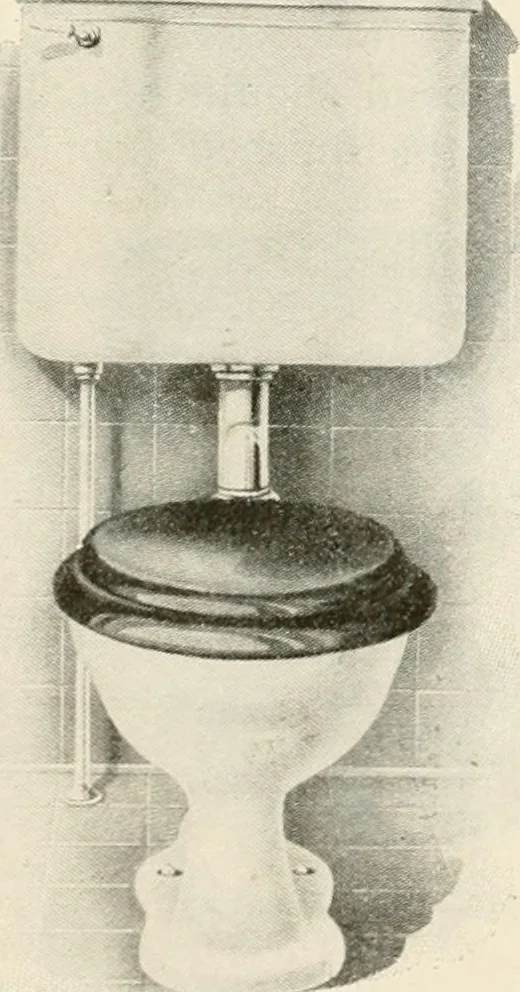

ar to make a tight connection between the spud of the closet bowl andthe bend, but be careful that no putty drops into the bend. The lavatory should be fastened to the wall by means of a concealedwall hanger. This hanger is first securely fastened to grounds on wall andthen fixtures hung in place.… … Fig-. 116—Closet Combinationwith china tank. Revent System Illustration, Fig. 109 shows a bathroom out-fit with the same layout as Fig. 108, but it hasa revent connected to the 4 inch soil stack anddoubly insures the Water seal in the traps frombeing broken when bath tub and lavatory areemptied and…
