Aladdin Manual of construction : containing practical methods covering every step necessary in the erection of Aladdin houses, barns, garages, etc. / prepared and illustrated by David S. Betcone (1918)
Betcone, David S, Aladdin Company · Bay City, Mich. : Aladdin Co. · leaf 150

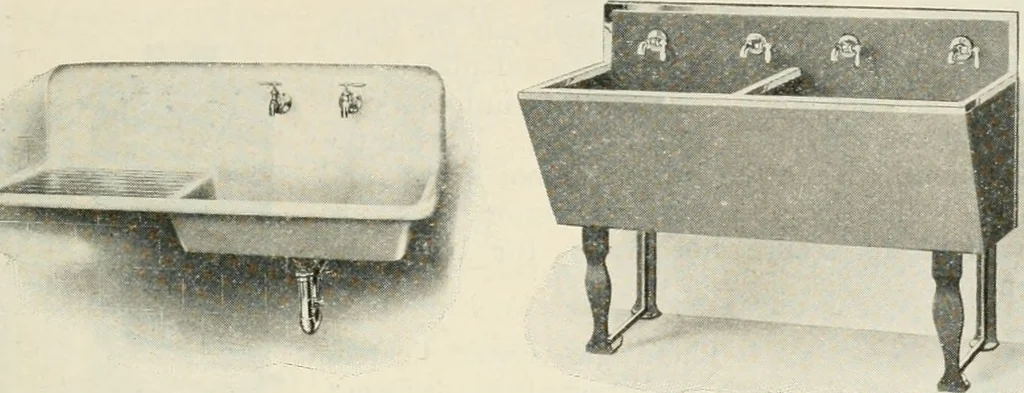

t on firstand second floor with revent system. You willnotice that each revent is placed so that empty-ing or flushing one fixture will not affect any ofthe others regardless of the amount of waterwhich passes thru pipes. When installing a bathroom outfit on bothfirst and second floors, it is… … Fig-. 117—Kitchen sink with attached drain. Fig. 118—Two compartment laundry sink. «H * When a kitchen sink alone is connected with the soil stack, it is notnecessary to revent it as the stack itself takes the place of a revent. The soil stack of all fix-tures except closet can be2 inches, but the…
