Aladdin Manual of construction : containing practical methods covering every step necessary in the erection of Aladdin houses, barns, garages, etc. / prepared and illustrated by David S. Betcone (1918)
Betcone, David S, Aladdin Company · Bay City, Mich. : Aladdin Co. · leaf 153

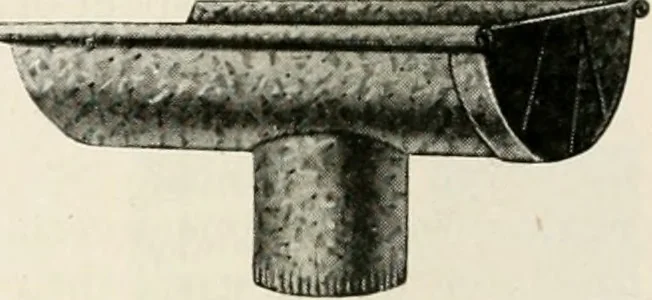

place a Fie. 130—Drop outlets, overflow connection in cistern. The troughs are fastened to eave of building by heavy wire hangers, asshown by Fig. 126. Be sure these are securely fastened and that trough hassufficient fall toward outlet. To fasten the conductor pipe to wall of build-ing malleable… … Cisterns CISTERNS are constructed out of wood, concrete or brick, for the pur-pose of collecting the rain or soft water for domestic uses. Theyshould be located so that the water from the eave can be drained intothem, and also easily accessible to supply laundry tub or plumbingfixtures. It is a…
Building
