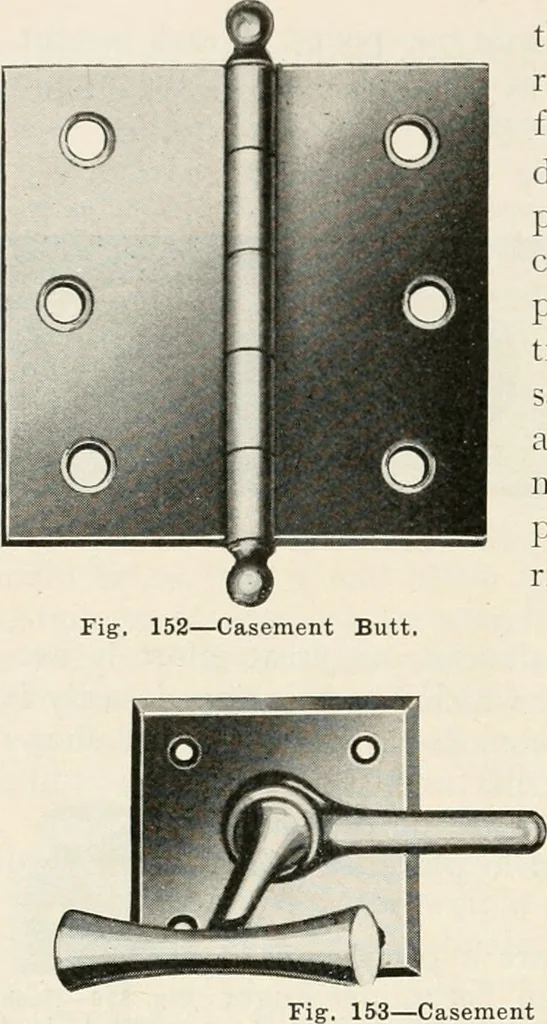

Fig. 151—Sash Lock. Casement Window Hardware Casement sash are equipped and are adjustable upon a pair of butts.Most casement sash are hinged at the side and swing in. Fig. 152 shows a2>4x2^ in. loose pin butt commonly used on casement sash. The oppositeside is equipped with a small fixture… … the inside surface of the siderail of sash and the strike isfastened to the side of the win-dow jamb. The butts should beplaced so that when the sash areclosed they will swing com-pletely into the frame and fittightly. When the casementsash are made in pairs, the sashare hung on butts in the…
