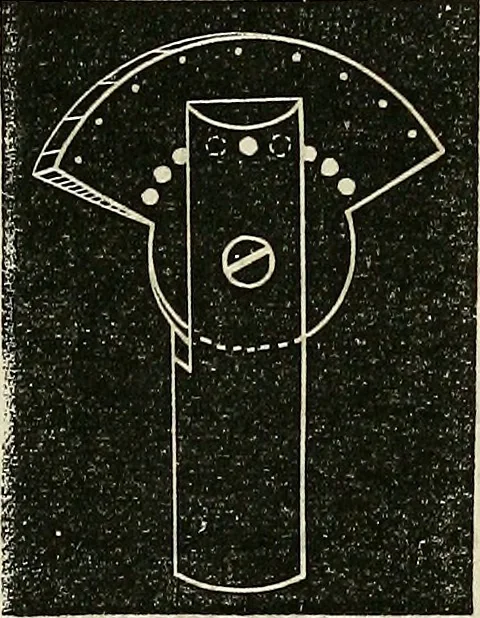

m of the escape wheel, which will givethe limit to the lower slit in the cylinder. The nut D can then be adjusted to the top ofthe escape wheel tooth, which will determinethe position of the upper cut of the cylinder;which measurements can at once be trans-ferred to the cylinder in the lathe, which… … Pivoting Rest. In the following diagram is represented anadjunct to an American lathe, as a substitutefor the Jacot. It is placed in the stock ofthe common rest, and adjusted to height andposition by the usualset screws. The circu-lar rest is let into theslot, and turns upon theset screw in its…
