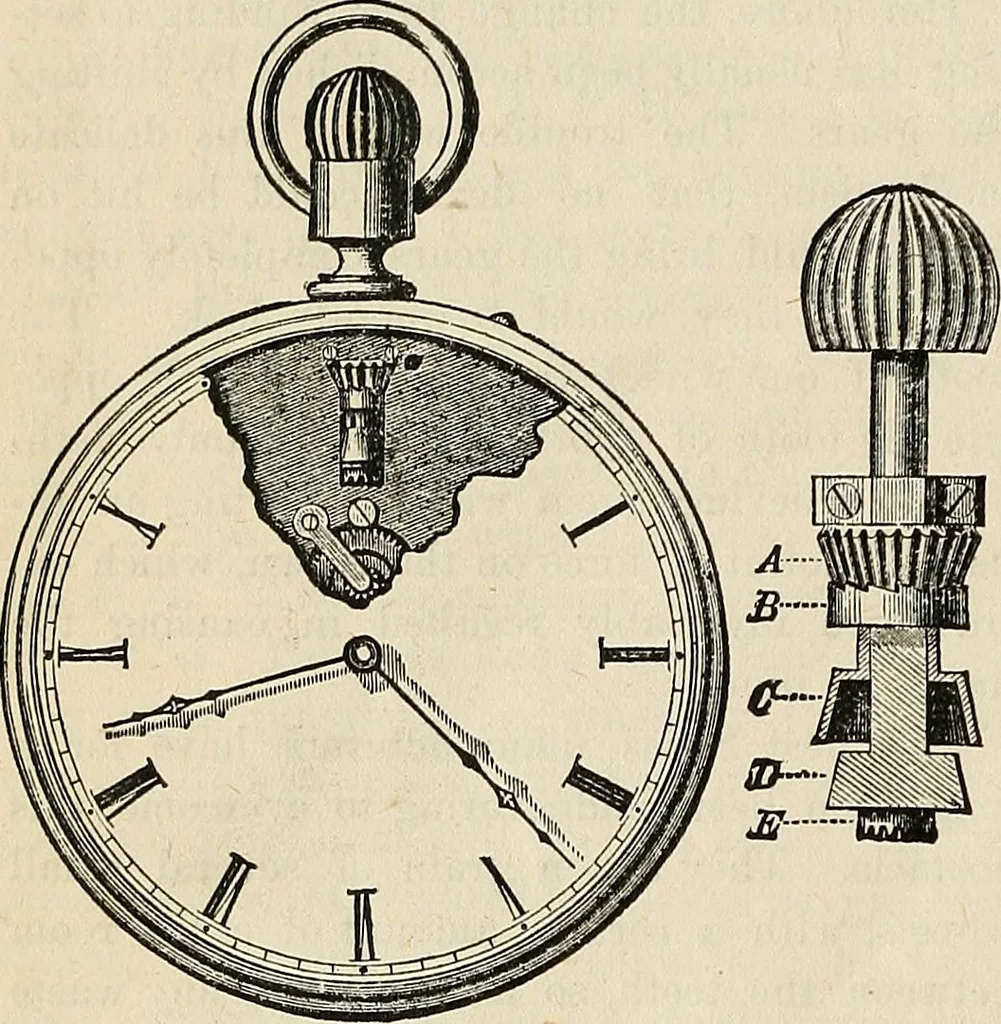

The smaller cut gives an enlarged drawing ofthe shape and position of the various parts, the 282 AMERICAN HOROLOGICAL JOURNAL. clutch being open and the watch ready for wind-ing. A is a bevel-gear, connecting with a con-trite-wheel on the upper plate, which acts di-rectly with the barrel. In the… … sure is brought on the spring, the ratchet B bo-comes released, and is no longer in connection,from a change in its position, with the bevel-gear A. The mechanism is then in proper ad-justment for hand-setting, the two parts of thefriction-clutch C and D being closed. 0 is asteel cup, so made as to…
