The American house-carpenter; a treatise upon architecture, cornices and mouldings, framing, doors, windows, and stairs. Together with the most important principles of practical geometry (1852)
Hatfield, R. G. (Robert Griffith), 1815-1879 · New York : J. Wiley · leaf 131

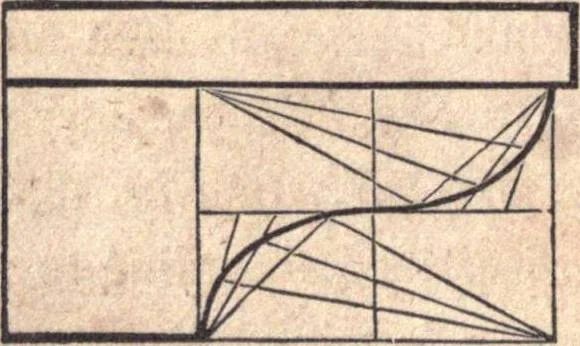

Fig. 143. 236.— To describe the Grecian cyma-recta. When the pro-jection is more than the height, as at Fig. 142, make a b equalto the height, and divide abed into 4 equal parallelograms;then proceed as directed in note to Art. 118. When the projec-tion is less than the height, draw d a, (Fig.… … Fig. 144.
