The American house-carpenter; a treatise upon architecture, cornices and mouldings, framing, doors, windows, and stairs. Together with the most important principles of practical geometry (1852)

Hatfield, R. G. (Robert Griffith), 1815-1879 · New York : J. Wiley · leaf 135

An illustration from The American house-carpenter; a treatise upon architecture, cornices and mouldings, framing, doors, windows, and stairs. Together with the most important principles of practical geometry, 1852, leaf 135

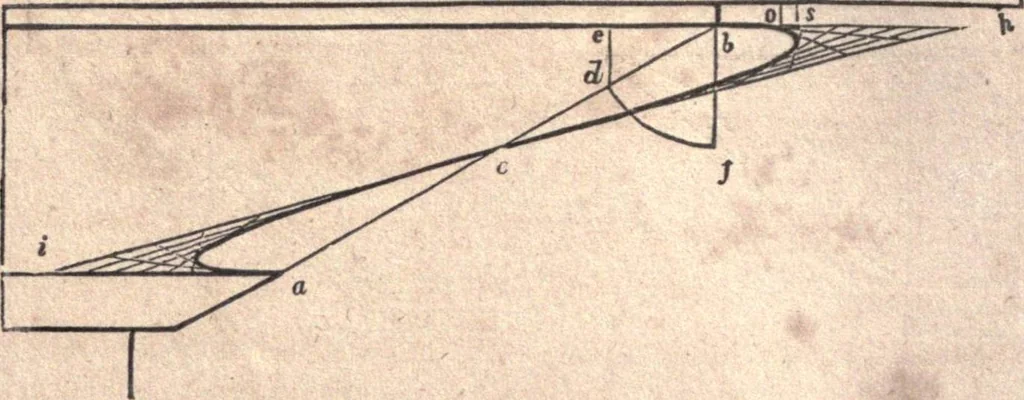

an-tle-shelves. The tangent, i h, is found thus: bisect the line, a 6,at c, and b c at d; from d, draw d e, at right angles to e b ; fromb, draw b /, parallel to e d ; upon b, with b d for radius, describethe arc, df; divide this arc into 7 equal parts, and set one of theparts from s, the limit of… … Fig. 168.
