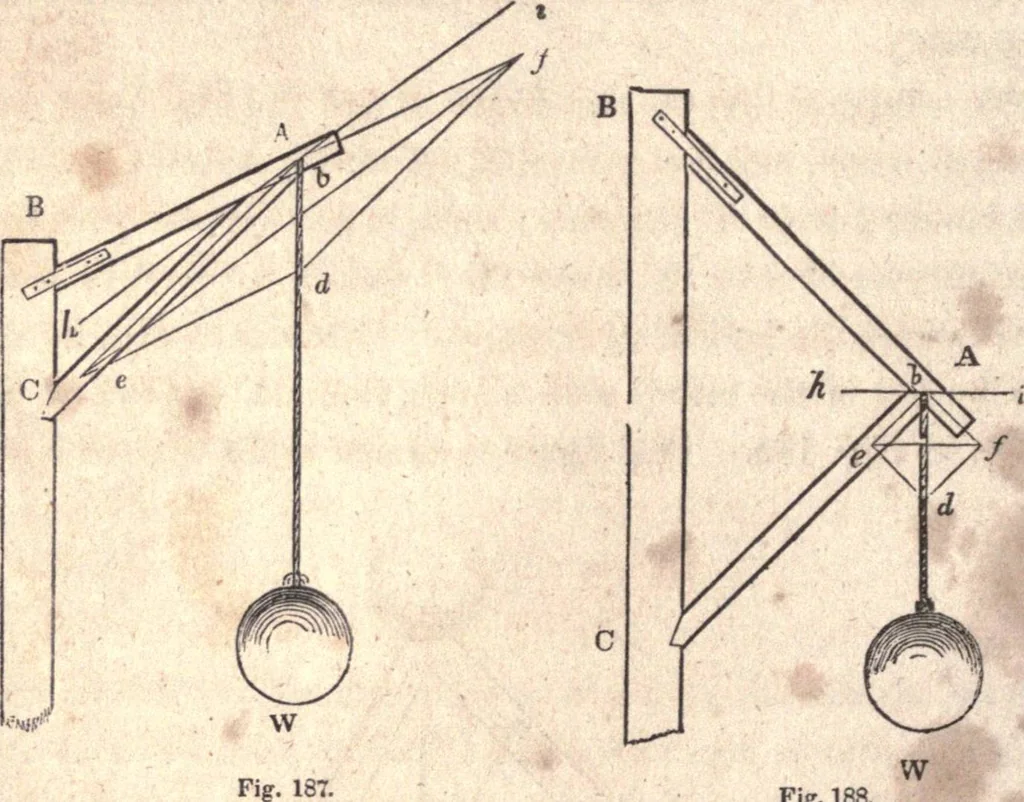

om/and e horizontallines to the vertical line, b d, meeting it in o and o; then/ o will bethe horizontal thrust at B, and e o at A ; these will be found toeqfual one another. When the rafters of a roof are thus connected,all tendency to thrust the walls horizontally is removed, the onlypressure on… … Fig. 188. 251 — Fig. 187 and 188 exhibit methods of framing for sup-porting the equal weights. IF and IF. Suppose it be required tomeasure and compare the strains produced on the pieces, A Band A C. Construct the parallelogram of forces, e b f d, ac-cording to Art. 248. Then b f will show the…
